Product Summary

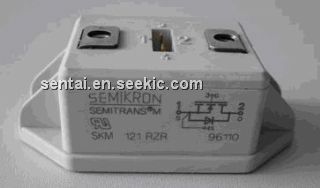

The skm 121rzr is a Power MOSFET Module. The applications of the skm 121rzr include Switched mode power supplies, DC servo and robot drives, DC choppers, UPS equipment, Plasma cutting, Not suitable for linear amplification.
Parametrics
skm 121rzr absolute maximum ratings: (1)VDS: 200 V; (2)ID: 130 A; (3)IDM: 390 A; (4)VGS: ±20 V; (5)TVJ: -40 to +150 ℃ ; (6)VISOL: 2500 V; (7)IF: 130 A; (8)IFM: 390 A.
Features
skm 121rzr features: (1)N channel, enhancement mode; (2)Avalanche characteristics; (3)Short internal connections avoid oscillations; (4)Isolated copper baseplates; (5)All electrical connections on top for easy busbaring; (6)Large clearance and creepage distances; (7)UL recognized, file no. E63532.
Diagrams
