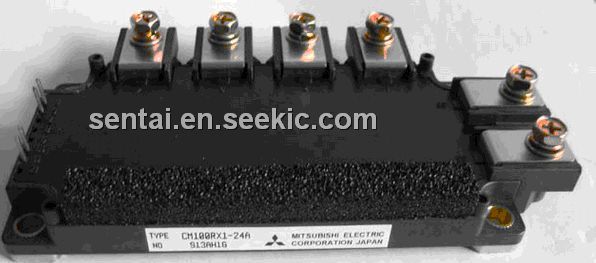

Product Summary

The cm100rx1-24a is an IGBT Module. The applications of the cm100rx1-24a include General purpose inverters & Servo controls, etc.

Parametrics

cm100rx1-24a absolute maximum ratings: (1)Collector-emitter voltage, G-E Short, VCES: 1700V; (2)Gate-emitter voltage, C-E Short, VGES: ±20V; (3)Collector current, TC= 25℃, IC: 1000A; (4)Collector current, pulse, ICM: 2000A; (5)Emitter current, TC= 25℃, IE: 1000A; (6)Emitter current, pulse, IEM: 2000A; (7)Maximum collector dissipation, TC= 25℃, PC: 8900W; (8)Junction temperature, TJ: -40 to +150℃; (9)Storage temperature, Tstg: -40 to +125℃; (10)Isolation voltage, Viso: 3500Vrms.

Features

cm100rx1-24a features: (1)IC: 1000A; (2)VCES: 1700V; (3)Insulated Type; (4)2-elements in a pack.

Diagrams

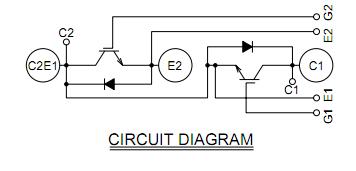

cm100rx1-24a pin connection
