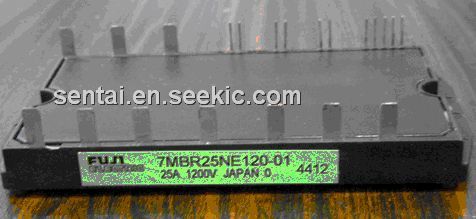

The 7mbr25ne120-01 is an IGBT MODULE. The applications of the 7mbr25ne120-01 include Inverter for Motoe Drive, AC and DC Servo Drive Amplifier, Uninterruptible Power Supply.
Parametrics
7mbr25ne120-01 absolute maximum ratings: (1)Collector-Emitter voltage, VCES: 1200 V; (2)Gate-Emitter voltage, VGES: ±20 V; (3)Collector current, IC: 25 A; (4)Collector power disspation, PC: 200 W; (5)Collector-Emitter voltage, VCES: 1200 V; (6)Gate-Emitter voltage, VGES: ±20 V; (7)Collector current, IC: 15 A; (8)Collector power disspation, PC: 120 W; (9)Repetitive peak reverse voltage: 1200 V; (10)Average forward current, IFAV: 1 A; (11)Surge current, IFSM: 50 A; (12)Repetitive peak reverse voltage, VRRM: 1600 V; (13)Non-Repetitive peak reverse voltage, VRSM: 1700 V; (14)Average output current, IO: 25 A; (15)Surge current (Non-Repetitive), IFSM: 320 A; (16)I2t: 512 A2S; (17)Operating junction temperature, Tj: +150 ℃; (18)Storage temperature, Tstg: -40 to +125 ℃; (19)Isolation voltage, Viso: AC 2500 V; (20)Mounting screw torque: 1.7 Nm.
Features
7mbr25ne120-01 features: (1)High Speed Switching; (2)Voltage Drive; (3)Low Inductance Module Structure; (4)Converter Diode Bridge Dynamic Brake Circuit.

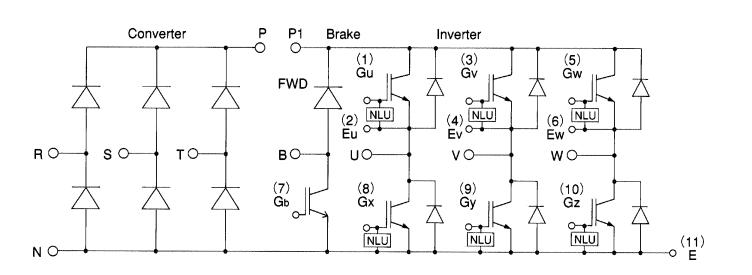

Diagrams
