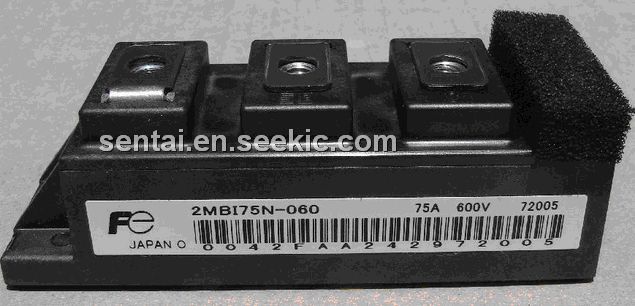

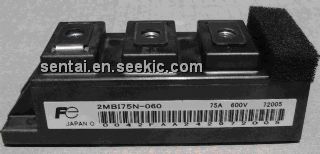

The 2mb175n-060 is a signal conditioning 2:1 multiplexer and 1:2 fan-out buffer. The 2mb175n-060 designed for use in backplane redundancy or cable driving applications. Signal conditioning features include input equalization and programmable output de-emphasis that enable data communication in FR4 backplane up to 4.25 Gbps. Each input stage has a fixed equalizer to reduce ISI distortion from board traces. It is ideal for: (1)backplane driver or cable driver; (2) redundancy and signal conditioning applications; (3)cpri/obsai.
Parametrics
2mb175n-060 absolute maximum ratings: (1)supply voltage (vcc): -0.3v to 4v; (2)cmos/ttl input voltage: -0.3v to (vcc +0.3v); (3)cml input/output voltage: -0.3v to (vcc +0.3v); (4)junction temperature: +150°c; (5)storage temperature: -65°c to +150°c; (6)lead temperature soldering, 4 seconds: +260°c; (7)thermal resistance, θja (note 8): 26.2°c/w; (8)thermal resistance, θjc-top: 3.3°c/w; (9)Thermal Resistance,ΦJB: 11.1°C/W; (10)ESD Rating (Note 10): HBM, 1.5 kΩ, 100 pF: 6kv; CDM: 1.25 kV; MM: 350V.
Features
2mb175n-060 features: (1)2:1 multiplexer and 1:2 buffer; (2)0.25 – 4.25 gbps fully differential data paths; (3)fixed input equalization; (4)programmable output de-emphasis; (5)independent de-emphasis controls; (6)programmable loopback modes; (7)on-chip terminations; (8)hbm esd rating 5.5 kv on all pins; (9)+3.3v supply; (10)lead-less llp-36 package; (11)-40°c to +85°c operating temperature range.

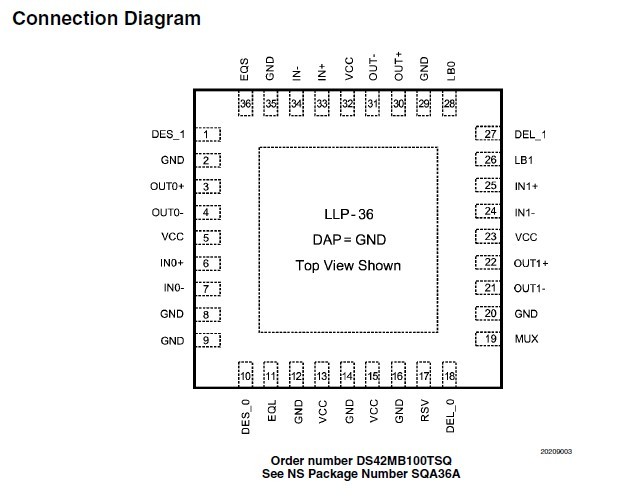

Diagrams
