Product Summary
The fm100cla120 is a 1.0A Surface Mount Fast Recovery Rectifier.
Parametrics
fm100cla120 absolute maximum ratings: (1)Forward rectified current I O: 1.0 A; (2)Forward surge current I FSM: 30 a; (3)Reverse current I R: 100 μA; (4)Thermal resistance RèJA: 42 °C/W; (5)Diode junction capacitance CJ: 15 PF; (6)Storage temperature TSTG: -65 to 175°C.
Features
fm100cla120 features: (1)Batch process design, excellent power dissipation offers better reverse leakage current and thermal resistance.; (2)Low profile surface mounted application in order to optimize board space.; (3)Tiny plastic SMD package.; (4)High current capability.; (5)Fast switching for high efficiency.; (6)High surge current capability.; (7)Glass passivated chip junction.; (8)Lead-free parts meet RoHS requirments.

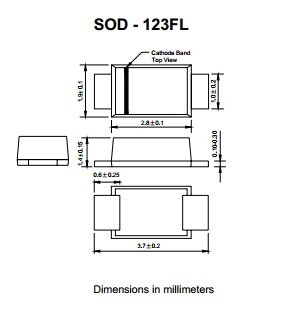

Diagrams
