Product Summary

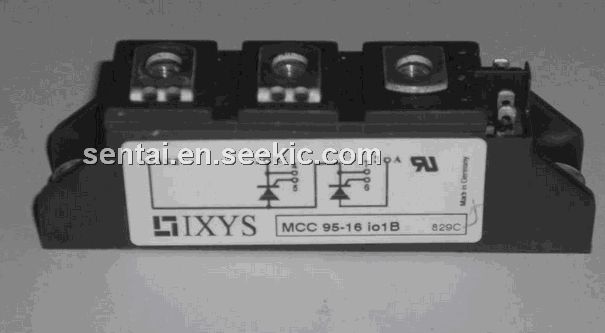

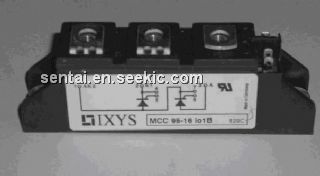

The mcc95-16 is a thyristor module. It is used in DC motor control, Softstart AC motor controller, Light, heat and temperature control. Its advantages include: space and weight savings, simple mounting with two screws, improved temperature and power cycling and reduced protection circuits.

Parametrics

mcc95-16 absolute maximum ratings: (1)dS, Creepage distance on surface: 12.7mm; (2)dA, Strike distance through air: 9.6mm; (3)a, Maximum allowable acceleration: 50m/s2; (4)IRRM, IDRM (TVJ = TVJM, VR = VRRM, VD = VDRM): 5mA; (5)VT0 For power-loss calculations only (TVJ = 125℃): 0.8V.

Features

mcc95-16 features: (1)International standard package, JEDEC TO-240 AA; (2)Direct copper bonded Al2O3 -ceramic base plate; (3)Planar passivated chips; (4)Isolation voltage 3600 V~; (5)UL registered, E 72873; (6)Gate-cathode twin pins for version 1.

Diagrams

mcc95-16 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MCC95-16io1B
MCC95-16io1B

Ixys

Discrete Semiconductor Modules 95 Amps 1600V

Data Sheet

Negotiable
