CM75DY-12H

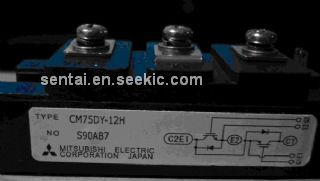

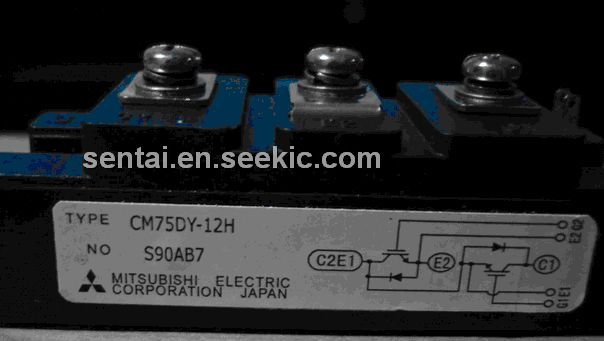

cm75dy-12h, Mitsubishi IGBT Module, 600 Volts, 75 Amperes, MITSUBISHI

Rated 5 Rating 5 | reviews | Write a review

Price:: US $8.00~10.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	10.00 / Piece
101 ~ 200 :	9.00 / Piece
201 ~ 300 :	8.00 / Piece

PartNumber:: CM75DY-12H

Brand:: MITSUBISHI - MITSUBISHI | D/C:

Availability:: Supply Ability: 100/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Miki's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-10-17

From Other Seller

Part Number:CM75DY-12H
US $8.00 - 10.00
CM75DY-12H MITSUBISHI Encapsulation MODULE HIGH POWER SWITCHING USE

US $82.00 - 85.00 / Piece
(0) Remove
CM75DY-12H

US $50.00 - 80.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The cm75dy-12h is a Mitsubishi IGBT Module. The cm75dy-12h is designed for use in switching applications. The cm75dy-12h consists of two IGBTs in a half-bridge configuration with each transistor having a reverse-connected super-fast recovery free-wheel diode. All components and interconnects of the cm75dy-12h are isolated from the heat sinking baseplate, offering simplified system assembly and thermal management. The applications of the cm75dy-12h include AC Motor Control, Motion/Servo Control, UPS, Welding Power Supplies.

Parametrics

cm75dy-12h absolute maximum ratings: (1)Junction Temperature, Tj: –40 to 150 ℃; (2)Storage Temperature, Tstg: –40 to 125 ℃; (3)Collector-Emitter Voltage (G-E SHORT), VCES: 600 Volts; (4)Gate-Emitter Voltage (C-E SHORT), VGES: ±20 Volts; (5)Collector Current (TC = 25 ℃), IC: 75 Amperes; (6)Peak Collector Current, ICM: 150* Amperes; (7)Emitter Current** (TC = 25 ℃), IE: 75 Amperes; (8)Peak Emitter Current**, IEM: 150* Amperes; (9)Maximum Collector Dissipation, Pc: 310 Watts; (10)Mounting Torque, M5 Main Terminal: 1.47 to 1.96 Nm; (11)Mounting Torque, M6 Mounting: 1.96 to 2.94 Nm; (12)Weight: 190 Grams; (13)Isolation Voltage: 2500 Vrms.

Features

cm75dy-12h features: (1)Low Drive Power; (2)Low VCE(sat); (3)Discrete Super-Fast Recovery Free-Wheel Diode; (4)High Frequency Operation; (5)Isolated Baseplate for Easy Heat Sinking.
