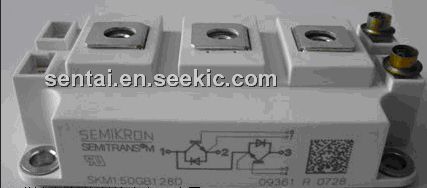

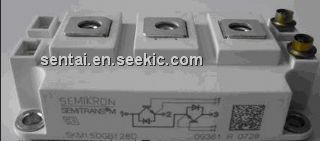

Product Summary

The skm150gb128d is a SPT IGBT Module. The applications of it are AC inverter drives, UPS, electronic welders at fsw up to 20kHz.

Parametrics

skm150gb128d absolute maximum ratings: (1)VCES: 1200V; (2)IC: 200A; (3)ICRM: 200A; (4)IFRM: 200V; (5)Tvj: -40℃ to +150℃; (6)Tstg: -40℃ to +125℃; (7)Visol: 4000V.

Features

skm150gb128d features: (1)SPT=soft-punch-through technology; (2)VCEsat with positive temperature coefficient; (3)high short circuit capability, self limiting to 6*IC.

Diagrams

skm150gb128d pin connection
