Product Summary

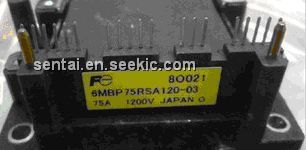

The 6mbp75rsa120-03 is an Intelligent Power Module ( R-Series ).
Parametrics
6mbp75rsa120-03 absolute maximum ratings: (1)DC Bus Voltage VDC: 0 to 900 V; (2)DC Bus Voltage (surge)VDC(Surge): 0 to 1000 V; (3)DC Bus Voltage (short operating)VSC: 200 to 800 V; (4)Collector-Emitter Voltage VCES: 0 to 1200 V; (5)Inverter Continuous IC: 75 A Collector 1ms ICP: 150 A; Current Duty=62.6% -IC: 75 A.; (6)Collector Power Dissipation One Transistor PC: 595 W; (7)Voltage of Power Supply for Driver VCC: 0 to 20 V; (8)Input Signal Voltage VIN: 0 to VZ V; (9)Input Signal Current IIN: 1 mA; (10)Alarm Signal Voltage VALM: 0 to VCC V; (11)Alarm Signal Current IALM: 15 mA; (12)Junction Temperature Tj: 150°C; (13)Operating Temperature TOP: -20 to 100 °C; (14)Storage Temperature Tstg: -40 to 125°C; (15)Isolation Voltage A.C. 1min. Viso: 2500 V.
Features
6mbp75rsa120-03 features: (1)Current of P-Line Side Driver (One Unit)ICCP: 3 to 18 mA; (2)Current of N-Line Side Driver (Three Units)ICCN: 10 to 65 mA; (3)Input Zener Voltage VZ RIN=20kW: 8.0 V; (4)Over Heating Protection Temperature Level TCOH: 110 to 125°C; (5)Hysteresis TCH: 20°C; (6)IGBT Chips Over Heating Protec. Temp. Level TjOH: 150°C; (7)Hysteresis TjH 20; (8)Inverter Collector Current Protection Level IOC Tj=125°C 113 A; (9)Over Current Detecting Time tDOC Tj=25°C 10 µs; (10)Alarm Signal Hold Time tALM 1.5 2 ms; (11)Limiting Resistor for Alarm RALM: 1425 to 1575 Ω.
Diagrams
