Product Summary
The ph600dva060 is a DC-DC power module.
Parametrics
ph600dva060 absolute maximum ratings: (1)Input voltage range: DC 200 to 400 V; (2)Output voltage range: 510% (12 V to 28 V types); (3)Line regulation: 0.4%, within nominal input voltage range at constant load (3.3 V output: 20 mV); (4)Load regulation: 0.8%, no load to full load at constant input voltage; (5)Cooling: Conduction cooling; (6)Operating ambient temperature: Baseplate temperature: –20 to +100 ℃; (7)Withstand voltage: DC 48V input/input to output: 1.5 kVAC; (8)Safety standard: Approved by UL1950; (9)Functions: Over voltage protection; (10)Output voltage: 3.3 V; (11)Output current: 100 A; (12)Output power: 330 W.
Features
ph600dva060 features: (1)marking (Low Voltage Directive); (2)Compact DC-DC power module; (3)Large power 300 W/600 W; (4)High power density: 61.6 W/inch3; (5)Wide baseplate temperature: –20 to +100 ℃; (6)Wide input voltage range: DC36 to 76V; (7)2 year warranty.

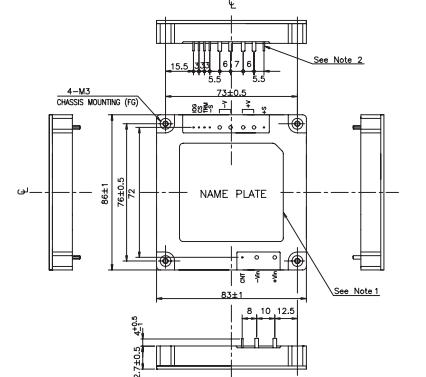

Diagrams
