Product Summary

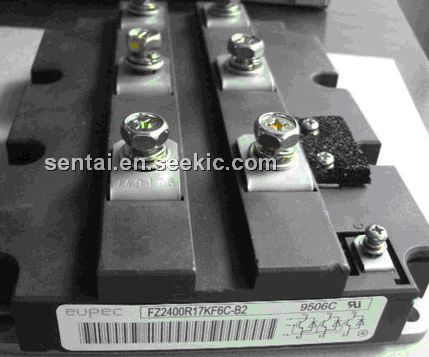

The fz2400r17kf6c-b2 is an IGBT module.

Parametrics

fz2400r17kf6c-b2 absolute maximum ratings: (1)collector-emitter voltage, VCES: 1700 V; (2)DC-collector current, TC = 25℃, IC: 2400 A; (3)repetitive peak collector current, tP = 1 ms, TC = 80℃, ICRM: 4800 A; (4)total power dissipation, TC=25℃, Transistor Ptot: 15,5kW; (5)gate-emitter peak voltage, VGES: +/- 20V.

Features

fz2400r17kf6c-b2 features: (1)collector-emitter saturation voltage: - 2,4 2,9 V; (2)gate threshold voltage VGE(th): 4,5 5,5 6,5 V; (3)input capacitance: 170 -nF; (4)reverse transfer capacitance: -11-nF.

Diagrams

fz2400r17kf6c-b2 pin connection
