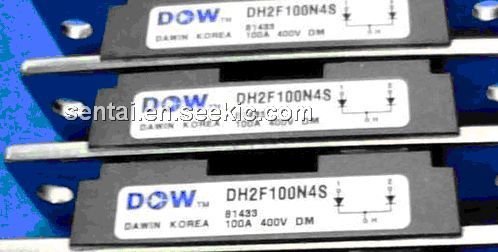

Product Summary

The dh2f100n4s is an Ultra-Fast Soft Recovery Diode Module. The dh2f100n4s is optimized to reduce losses and EMI/RFI in high frequency power conditioning electrical systems. The dh2f100n4s is ideally suited for power converters, motors drives and other applications where switching losses are significant portion of the total losses. The applications of the dh2f100n4s include Motor Drives, Free wheel use, High Power Converters, Welders, Various Switching and Telecommunication Power Supply.

Parametrics

dh2f100n4s absolute maximum ratings: (1)VRRM, Repetitive Peak Reverse Voltage: 1200 V; (2)VR(DC), Reverse DC Voltage: 960 V; (3)IF(AV), Average Forward Current: 200 A; (4)IFSM, Surge(non-repetitive) Forward Current: 2000 A; (5)I2t, I2t for Fusing: 16.7* 103 A2s; (6)Tj, Junction Temperature: -40 to 150 ℃; (7)Tstg, Storage Temperature: -40 to 125 ℃; (8)Visol, Isolation Voltage: 2500 V; (9)Pd, Maximum Power Dissipation: 300 W; (10)Mounting Torque: 4.0 N.m; (11)Terminal Torque: 2.0 N.m; (12)Weight: 140 g.

Features

dh2f100n4s features: (1)Repetitive Reverse Voltage: VRRM = 1200 V; (2)Low Forward Voltage Drop: VF(typ.) = 1.7 V; (3)Average Forward Current: IF(AV.) = 100A @ Tc = 100 ℃; (4)Ultra-Fast Reverse Recovery Time: trr(typ.) = 100 ns; (5)Extensive Characterization of Recovery Parameters; (6)Reduced EMI and RFI; (7)Isolation Type Package.

Diagrams

dh2f100n4s block diagram
