Product Summary

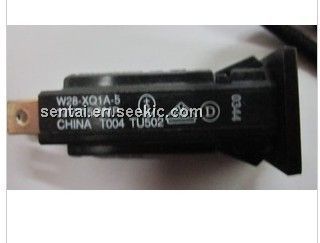

The W28-XQ1A-5 is a push to reset fuseholder-type thermal P&B circuit breaker.

Parametrics

W28-XQ1A-5 absolute maximum ratings: (1)Calibration: Will continuously carry 100% of rating; (2)Dielectric Strength: Over 1,500 volts RMS; (3)Maximum Operating Voltages: 32VDC; 250VAC, 50/60 Hz; (4)Interrupt Capacity: 1,000 amps at 250VAC, 50/60 Hz. and 32VDC in accordance with UL standard 1077; (5)Termination: .250 (6.35mm) quick connects. Soldering to terminals is not recommended; (6)Mounting: Snaps into panel from front. See Recommended Panel Cutouts; (7)Approximate Weight: 0.35 oz. (10g).

Features

W28-XQ1A-5 features: (1)Push to reset; (2)Approved to many international standards; (3)Replaces slow blow glass cartridge fuse; (4)Labor-saving snap-in mounting; (5)Button extends for visual trip indication.

Diagrams

W28-XQ1A-5 dimension figure

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
W28-XQ1A-5
W28-XQ1A-5

TE Connectivity / P&B

Circuit Breakers 5A PUSH TO RESET

Data Sheet

0-1: $1.91
1-10: $1.78
10-25: $1.67
25-50: $1.51
