Product Summary

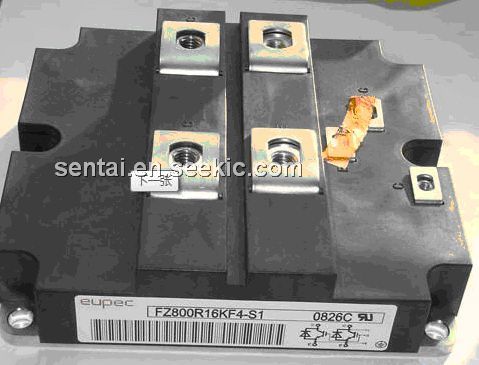

The fz800r16kf4-s1 is an IGBT-Module. The applications of the fz800r16kf4-s1 include High power converters, motor drives, UPS systems, wind turbines.

Parametrics

fz800r16kf4-s1 absolute maximum ratings: (1)Kollektor-emitter-sperrspannung collector-emitter voltage, VCES: 1200 V; (2)Kollector-dauergleichstrom DC-collector current, ICnom: 800 A; (3)Periodischer kollektor spitzenstrom repetitive peak collector current, ICRM: 1600 A; (4)Gesamt-verlustleistung total power dissipation, PTOT: 3550 W; (5)Gate-emitter-spitzenspannung gate-emitter peak voltage, VGES: +/-20 V.

Features

fz800r16kf4-s1 features: (1)Low switching losses; (2)Unbeatable robustness; (3)VCEsat with positive temperature coefficient; (4)Low VCEsat; (5)4 KV AC 1 min insulation; (6)Package with CTI > 400; (7)High creepage and clearance distances; (8)High power density; (9)Isolated base plate; (10)Standard housing.

Diagrams

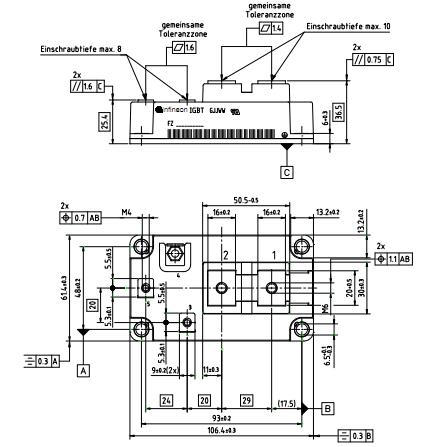

fz800r16kf4-s1 block diagram
