Product Summary

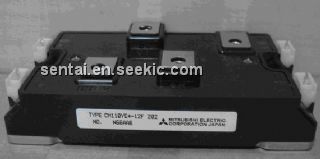

The cm110ye4-12f is a Three Level Inverter. The cm110ye4-12f has been designed for three level (neutral point clamped) topologies in applications requiring high efficiency operation and improved output waveform quality. The cm110ye4-12f also provides significant benefits in applications where low output noise using small filter components is required or where long motor leads create Standing Wave Ratio (SWR) voltage surge issues. The applications of the cm110ye4-12f include Three Level Inverter Topologies, Solar Power Inverters, High Efficiency UPS, Long Motor Lead Applications.
Parametrics
cm110ye4-12f absolute maximum ratings: (1)Junction Temperature, Tj: -40 to 150 ℃; (2)Storage Temperature, Tstg: -40 to 125 ℃; (3)Mounting Torque, Main Terminals, M5 Screw (Max.): 30 in-lb; (4)Mounting Torque, Mounting Holes, M5 Screw (Max.): 30 in-lb; (5)Weight (Typical: 390 Grams; (6)Isolation Voltage, Viso: 2500 Vrms; (7)Collector-Emitter Voltage (G-E Short), VCES: 600 Volts; (8)Gate-Emitter Voltage (C-E Short), VGES: ±20 Volts; (9)Collector Current DC (TC = 25 ℃), IC: 110 Amperes; (10)Peak Collector Current (Pulse)*2, ICM: 220 Amperes; (11)Emitter Current (TC = 25 ℃), IE*1: 110 Amperes; (12)Peak Emitter Current (Pulse)*2, IEM*1: 220 Amperes; (13)Maximum Collector Dissipation (TC = 25 ℃), PC*3: 375 Watts.
Features
cm110ye4-12f features: (1)Smaller Output Voltage Steps Reducing Surge Voltage; (2)Low Output Ripple Current; (3)Lower Modulation Frequency With Same Quality Output Waveform.
Diagrams
