Product Summary

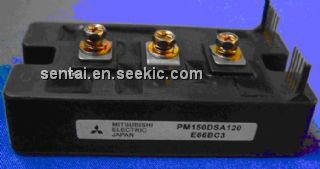

The pm150dsa120 is a Mitsubishi Intelligent Power Module. The pm150dsa120 is isolated base modules designed for power switching applications operating at frequencies to 20kHz. Built-in control circuits of the pm150dsa120 provide optimum gate drive and protection for the IGBT and free wheel diode power devices. The applications of the pm150dsa120 include Inverters, UPS, Motion/Servo Control, Power Supplies.
Parametrics
pm150dsa120 absolute maximum ratings: (1)Power Device Junction Temperature, Tj: -20 to 150 ℃; (2)Storage Temperature, Tstg: -40 to 125 ℃; (3)Case Operating Temperature, TC: -20 to 100 ℃; (4)Mounting Torque, M5 Mounting Screws: 2.5 to 3.5 Nm; (5)Mounting Torque, M5 Main Terminal Screws: 2.5 to 3.5 Nm; (6)Module Weight (Typical): 430 Grams; (7)Supply Voltage Protected by OC and SC, VCC(prot.): 800 Volts; (8)Isolation Voltage, Viso: 2500 Vrms.
Features
pm150dsa120 features: (1)Complete Output Power Circuit; (2)Gate Drive Circuit; (3)Protection Logic.

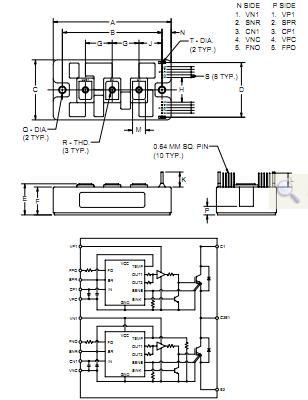

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PM150DSA120 |
|
MOD IPM DUAL 1200V 150A |
Data Sheet |
Negotiable |
|
||||||
