Product Summary

The dd175n34k is a Rectifier Diode Module.

Parametrics

dd175n34k absolute maximum ratings: (1)Periodische Spitzensperrspannung repetitive peak reverse voltages, VRRM: 2800 to 3000 V; (2)Stoβspitzensperrspannung non-repetitive peak reverse voltage, VRSM: 2900 to 3100 V; (3)Durchlaβstrom-Grenzeffektivwert maximum RMS on-state current, IFRMSM: 350 A; (4)Dauergrenzstrom average on-state current, IFAVM: 175 A; (5)Stoβstrom-Grenzwert surge current, IFSM: 4.500 A; (6)Grenzlastintegral I2t-value, I2t: 101.000 A2s.

Features

dd175n34k features: (1)Durchlaβspannung on-state voltage, vF: max. 2.05 V; (2)Schleusenspannung threshold voltage, V(TO): 0.9 V; (3)Ersatzwiderstand slope resistance, rT: 1.8 mΩ; (4)Sperrstrom reverse current, iR: max. 20 mA; (5)Isolations-Prüfspannung insulation test voltage, VISOL: 3.6 kV.

Diagrams

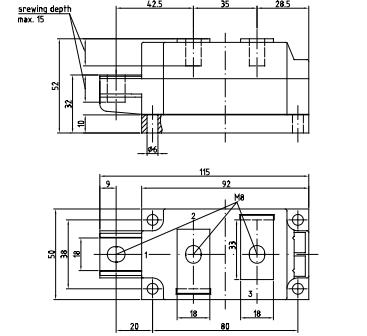

dd175n34k block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

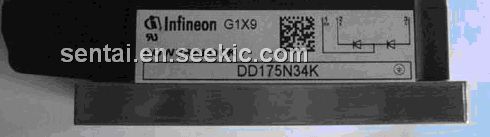

DD175N34K
DD175N34K
Infineon Technologies
Discrete Semiconductor Modules 3400V 350A
Data Sheet
0-4: $209.10
4-10: $188.19
