Product Summary

The skm75gb128de is a SPT IGBT Module. The applications of the skm75gb128de include AC inverter drives, UPS, Electronic welders at fsw > 20 KHz.

Parametrics

skm75gb128de absolute maximum ratings: (1)VCES: 1200 V; (2)IC: 100 A; (3)ICRM: 100 A; (4)VGES: ±20 V; (5)TVJ, TSTG: -40 to +150 ℃; (6)VISOL: 4000 V; (7)IF: 75 A; (8)IFRM: 100 A; (9)IFSM: 550 A.

Features

skm75gb128de features: (1)Homogeneous si; (2)SPT = Soft-punch-through technology; (3)VCE with positive temperature coefficient; (4)High short circuit capability, self limiting to 6 × LC.

Diagrams

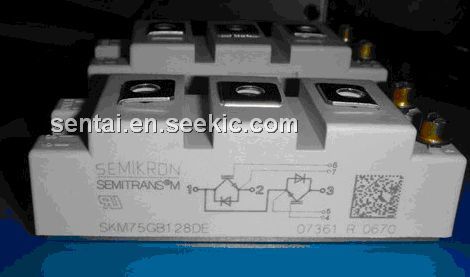

skm75gb128de block diagram
