Product Summary

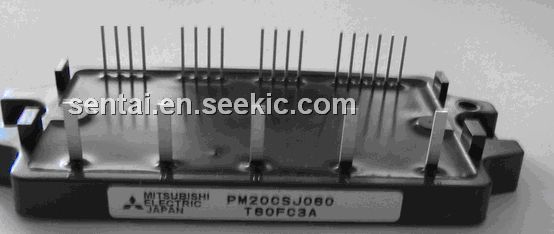

The pm20csj0b0 is a Mitsubishi Intelligent Power Module. The pm20csj0b0 is isolated base modules designed for power switching applications operating at frequencies to 20kHz. Built-in control circuits provide optimum gate drive and protection for the IGBT and free-wheel diode power devices. The applications of the pm20csj0b0 include Inverters, UPS, Motion/Servo Control, Power Supplies.

Parametrics

pm20csj0b0 absolute maximum ratings: (1)Power Device Junction Temperature, Tj: -20 to 150 ℃; (2)Storage Temperature, Tstg: -40 to 125 ℃; (3)Case Operating Temperature, TC: -20 to 100 ℃; (4)Mounting Torque, M4 Mounting Screws: 0.98 to 1.47 Nm; (5)Module Weight (Typical): 60 Grams; (6)Supply Voltage Protected by OC and SC, VCC(prot.): 400 Volts; (7)Isolation Voltage, Viso: 2500 Vrms; (8)Supply Voltage, VD: 20 Volts; (9)Input Voltage, VCIN: 20 Volts; (10)Fault Output Supply Voltage, VFO: 20 Volts; (11)Fault Output Current, IFO: 20 mA.

Features

pm20csj0b0 features: (1)Complete Output Power Circuit; (2)Gate Drive Circuit; (3)Protection Logic.

Diagrams

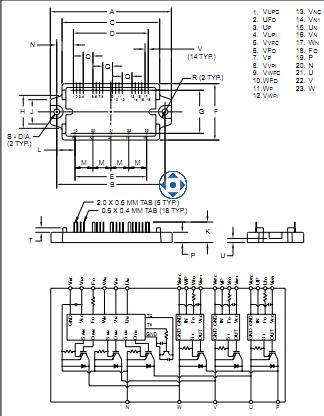

pm20csj0b0 block diagram
