Product Summary

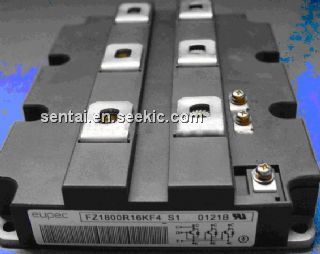

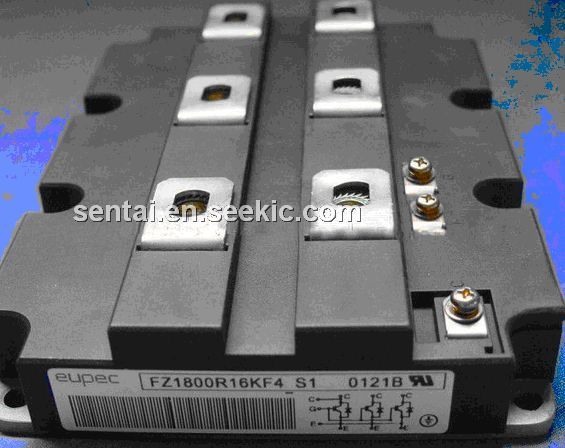

The fz1800r16kf4-s1 is an IHM-B IGBT-Modul. The applications of the fz1800r16kf4-s1 include High power converters, motor drives, UPS systems, wind turbines.
Parametrics
fz1800r16kf4-s1 absolute maximum ratings: (1)Kollektor-emitter-sperrspannung collector-emitter voltage, VCES: 1200 V; (2)Kollector-dauergleichstrom DC-collector current, ICnom: 1800 A; (3)Periodischer kollektor spitzenstrom repetitive peak collector current, ICRM: 3600 A; (4)Gesamt-verlustleistung total power dissipation, PTOT: 105 W; (5)Gate-emitter-spitzenspannung gate-emitter peak voltage, VGES: +/-20 V.
Features
fz1800r16kf4-s1 features: (1)Extended operation temperature TVjop; (2)4 KV AC 1 min insulation; (3)Package with CTI ＞ 400; (4)High power density; (5)New IHM B housing.
Diagrams
