Product Summary

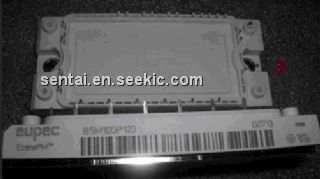

The bsm10gp120 is an IGBT-Module.

Parametrics

bsm10gp120 absolute maximum ratings: (1)Periodische Rückw. Spitzensperrspannung repetitive peak reverse voltage, VRRM: 1600 V; (2)Durchlaβstrom Grenzeffektivwert RMS forward current per chip, IFRMSM: 40 A; (3)Dauergleichstrom DC forward current, Id: 10 A; (4)Stoβstrom Grenzwert, IFSM: 300 A; (5)surge forward current: 230 A; (6)Grenzlastintegral, I2t: 450 A2s; (7)I2t - value: 260 A2s.

Features

bsm10gp120 features: (1)Kollektor-Emitter-Sperrspannung collector-emitter voltage, VCES: 1200 V; (2)Kollektor-Dauergleichstrom DC-collector current，IC: 20 A; (3)Periodischer Kollektor Spitzenstrom repetitive peak collector current, ICRM: 20 A; (4)Gesamt-Verlustleistung total power dissipation, Ptot: 100 W; (5)Gate-Emitter-Spitzenspannung gate-emitter peak voltage, VGES: +/- 20V V.

Diagrams

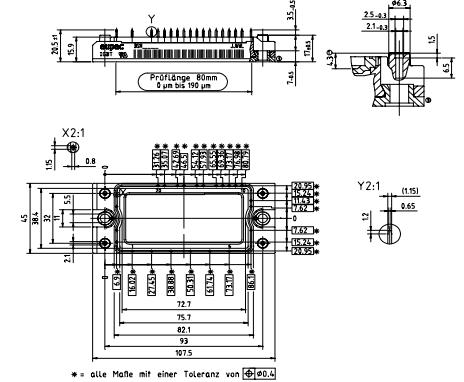

bsm10gp120 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BSM10GP120
BSM10GP120
Infineon Technologies
IGBT Modules 1200V 10A PIM
Data Sheet
0-1: $42.78
1-5: $40.64
5-10: $38.50
10-50: $36.10
BSM10GP120_B9
BSM10GP120_B9
Infineon Technologies
IGBT Modules IGBT 1200V 10A
Data Sheet
0-6: $55.20
6-10: $49.80
