MAX3221CAE

Product Summary

The MAX3221CAE is a Transceiver. The MAX3221CAE achieves 1μA supply current with Maxim’s revolutionary AutoShutdown feature. When the MAX3221CAE does not sense a valid signal level on their receiver inputs, the on-board power supply and drivers shut down. This occurs if the RS-232 cable is disconnected or if the transmitters of the connected peripheral are turned off. The system turns on again when a valid level is applied to any RS-232 receiver input. As a result, the system saves power without changes to the existing BIOS or operating system. The applications of the MAX3221CAE include Notebook, Subnotebook, and Palmtop Computers, Battery-Powered Equipment, Hand Held, Equipment, Peripherals, Printers.

Parametrics

MAX3221CAE absolute maximum ratings: (1)VCC: -0.3V to +6V; (2)V+ (Note 1): -0.3V to +7V; (3)V- (Note 1): +0.3V to -7V; (4)V+ + |V-| (Note 1): +13V; (5)T_IN, FORCEOFF, FORCEON, EN: -0.3V to +6V; (6)R_IN: ±25V; (7)T_OUT: ±13.2V; (8)R_OUT, INVALID: -0.3V to (VCC + 0.3V); (9)16-Pin SSOP (derate 7.14mW/℃ above +70℃): 571mW; (10)16-Pin TSSOP (derate 6.70mW/℃ above +70℃): 533mW; (11)20-Pin Plastic DIP (derate 11.11mW/℃ above +70℃): 889mW; (12)20-Pin SSOP (derate 8.00mW/℃ above +70℃): 640mW; (13)20-Pin TSSOP DIP (derate 7.00mW/℃ above +70℃): 559mW; (14)28-Pin Wide SO (derate 12.50mW/℃ above +70℃): 1W; (15)28-Pin SSOP (derate 9.52mW/℃ above +70℃): 762mW; (16)28-Pin TSSOP (derate 8.70mW/℃ above +70℃): 696mW; (17)MAX32_ _C_: 0℃ to +70℃; (18)MAX32_ _E_: -40℃ to +85℃; (19)Storage Temperature Range: -65℃ to +150℃; (20)Lead Temperature (soldering, 10sec): +300℃.

Features

MAX3221CAE features: (1)1μA Supply Current Achieved with AutoShutdown; (2)Small 0.1μF Capacitors; (3)True RS-232 Operation from VCC = +3.0V to +5.5V; (4)Meets EIA/TIA-562 Specifications Down to 2.7V; (5)Guaranteed 120kbps Data Rate; (6)6V/μs Min Guaranteed Slew Rate; (7)Smallest Single-Supply RS-232 Transceiver; (8)Guaranteed Mouse Driveability; (9)Small TSSOP Package.

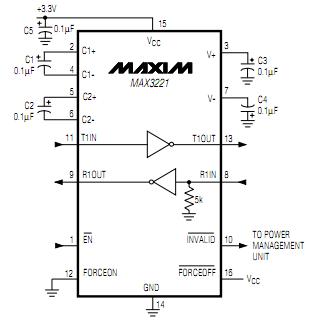

Diagrams
