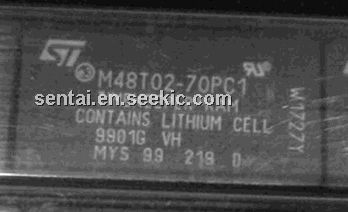

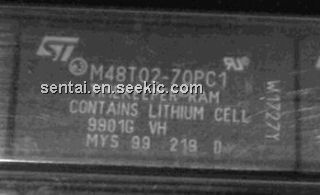

M48T02-70PC1

M48T02-70PC1, non-volatile static RAM and real time clock, –0.3 to 7 V, 20 mA, STMicroelectronics

Rated 5 Rating 5 | reviews | Write a review

Price:: US $17.00~18.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	18.00 / Piece
10 ~ 100 :	17.50 / Piece
100 ~ 1000 :	17.00 / Piece

PartNumber:: M48T02-70PC1

Brand:: STMicroelectronics - ST | Pack: | D/C: 11+

Availability:: Supply Ability: 1000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Miki's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-08-29

From Other Seller

Part Number:M48T02-70PC1
US $17.00 - 18.00
Quantity:

piece

Product Summary

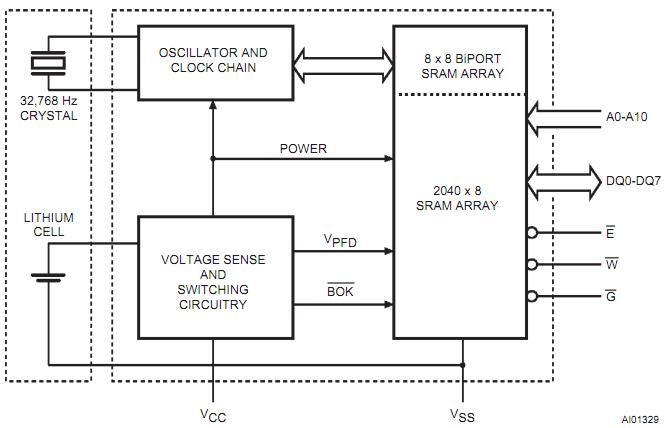

The M48T02-70PC1 is a 2Kb × 8 non-volatile static RAM and real time clock. The M48T02-70PC1 is pin and functional compatiblewith the DS1642. A special 24 pin 600mil DIP CAPHAT package houses the M48T0270PC1/12 silicon with a quartz crystal and a long life lithium button cell to form a highly integrated battery backed-up memoryand real time clock solution.

Parametrics

M48T02-70PC1 absolute maximum ratings: (1)Ambient Operating Temperature: 0 to 70 ℃; (2)Storage Temperature (VCC Off, Oscillator Off): –40 to 85 ℃; (3)Lead Solder Temperature for 10 seconds: 260 ℃; (4)Input or Output Voltages: –0.3 to 7 V; (5)Supply Voltage: –0.3 to 7 V; (6)Output Current: 20 mA; (7)Power Dissipation: 1 W.

Features

M48T02-70PC1 features: (1)integrated ultralow power sram, real time clock and power-fail; (2)controlcircuit; (3)bytewide? ram-likeclock access; (4)bcd coded year, month, day, date, hours, minutes and seconds; (5)typicalclock accuracy of ± 1 minute a month, at 25℃; (6)software controlled clock calibrationfor high accuracy; (7)applications; (8)automaticpower-failchipdeselect and write protection; (9)writeprotect voltages ; (10)self-contained battery and crystal in the caphat dip package; (11)pin and function compatiblewith jedecstandard 2kb × 8 srams.
