Product Summary

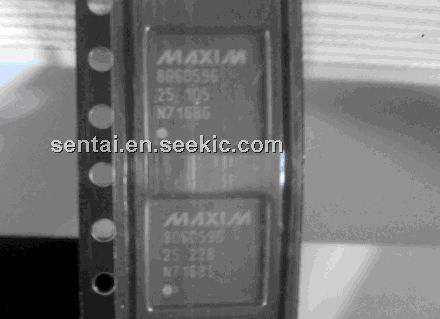

The MAX8060596-25 is a 1.2V temperature-compensated volt-age reference. The MAX8060596-25 uses the bandgap principle to achieve excellent stability and low noise at reverse currents down to 60 μA. The MAX8069 also features excellent stability, freedom from oscillation. The MAX8060596-25 is a functional alternative to Maxim’s ICL8069 with an identical pinout.The applications of the ZPD 10000 include Analog-to-Digital Converters, Digital-to-Analog Converters, Threshold Detectors, Voltage Regulators, Portable Instruments.
Parametrics
MAX8060596-25 absolute maximum ratings: (1)Forward Current: 10 mA; (2)Reverse Current: 10 mA; (3)MAX8069CCZQ: 0 to +70 ℃; (4)MAX8069ESA: -40 to +85 ℃; (5)Storage Temperature Range: -65 to +150 ℃.
Features
MAX8060596-25 features: (1)Temperature Coefficient Guaranteed to 25ppm/°C (max); (2)Low Bias Current: 60μA (min); (3)Low Dynamic Impedance; (4)Low Reverse Voltage; (5)Low Cost.

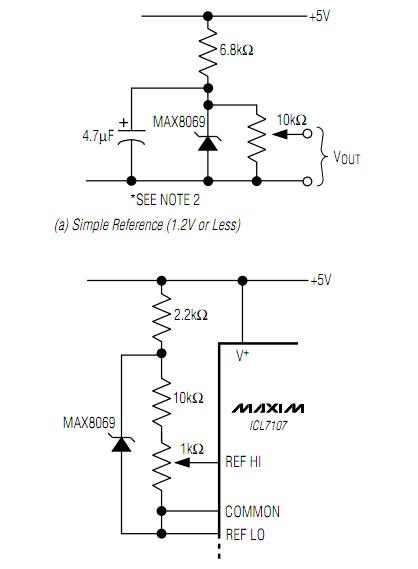

Diagrams
