Product Summary

The LM138K is an adjustable 3-terminal positive voltage regulator. The LM138K capables of supplying in excess of 5A over a 1.2V to 32V output range. The LM138K is exceptionally easy to use and require only 2 resistors toset the output voltage. Careful circuit design has resulted in outstanding load and line regulation comparable to many commercial power supplies. The LM138K family is supplied in a standard 3-lead transistor package.

Parametrics

LM138K absolute maximum ratings: (1)Ptot, Power Dissipation: Internally Limited W; (2)VI -VO, Input-Output Voltage DIfferential: 35 V; (3)Toper, Operating Junction Temperature Range LM138: -55 to 150℃; (4)Tstg, Storage Temperature Range: -65 to 150℃; (5)Tlead, Lead Temperature (Soldering, 10 seconds): 300℃.

Features

LM138K features: (1)guaranteed 7a peak output current; (2)guaranteed 5a output current; (3)adjustable output down to 1.2v; (4)line regulation typically 0.005% /v; (5)load regulation typically 0.1%; (6)guaranteed thermal regulation; (7)current limit constant with tem-; (8)perature; (9)standard 3-lead transistor package.

Diagrams

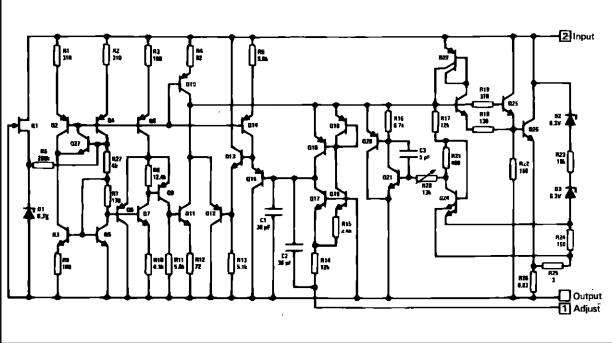

LM138K block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LM138K
LM138K
STMicroelectronics
Linear Regulators - Standard 1.2-32V Adj Positive
Data Sheet
0-1: $7.70
1-10: $6.58
10-100: $5.99
100-250: $5.43
LM138K STEEL
LM138K STEEL
National Semiconductor (TI)
Linear Regulators - Standard
Data Sheet
Negotiable
LM138K STEEL/NOPB
LM138K STEEL/NOPB

IC REG LDO ADJ 5A TO-3
Data Sheet
0-50: $26.30
LM138KSTEEL
LM138KSTEEL
National Semiconductor (TI)
Linear Regulators - Standard
Data Sheet
0-50: $27.29
50-100: $25.48
100-250: $23.84
LM138KSTEEL/NOPB
LM138KSTEEL/NOPB
National Semiconductor (TI)
Linear Regulators - Standard
Data Sheet
0-32: $26.30
32-100: $25.48
100-250: $23.84
LM138K-MIL
LM138K-MIL
National Semiconductor (TI)
Linear Regulators - Standard
Data Sheet
Negotiable
