Product Summary
The LH0070-0H is a precision, three terminal, voltage reference. The LH0070-0H is consisting of a temperature compensated zener diode driven by a current regulator and a buffer amplifier. The devices of the LH0070-0H provide an accurate reference that is virtually independent of input voltage, load current, temperature and time. The LH0070-0H has a 10.000V nominal output to provide equal step sizes in BCD applications. The LH0070-0H has a 10.240V nominal output to provide equal step sizes in binary applications.
Parametrics
LH0070-0H absolute maximum ratings: (1)Supply Voltage: 40V; (2)Power Dissipation (See Curve): 600 mW; (3)Output Current: ±20 mA; (4)Operating Temperature Range: -55℃ to +125℃; (5)Storage Temperature Range: -65℃ to +150℃; (6)Lead Temp. (Soldering, 10 seconds): 300℃.
Features
LH0070-0H features: (1)Accuracy output voltage: 10V ±0.02%; (2)Single supply operation: 11.4V to 40V; (3)Low output impedance: 0.2Ω; (4)Excellent line regulation: 0.1 mV/V; (5)Low zener noise: 20 μVp-p; (6)3-lead TO-5 (pin compatible with the LM109); (7)Short circuit proof; (8)Low standby current: 3 mA.

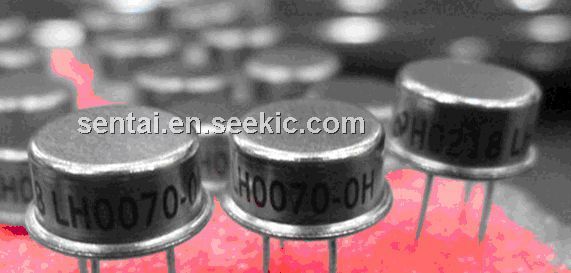

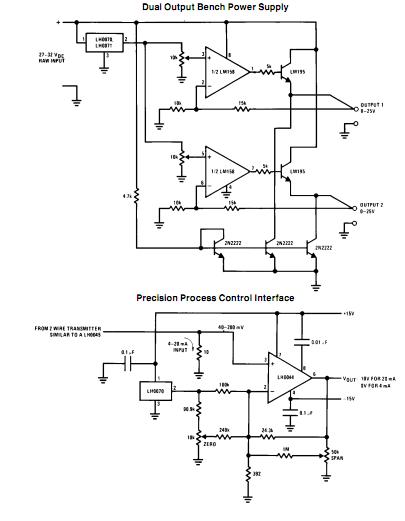

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LH0070-0H |
|
IC VREF SERIES SHUNT ZNR TO-39 |
Data Sheet |
|
|
||||||
|
LH0070-0H#PBF |
|
IC VREF SERIES SHUNT ZNR TO-39 |
Data Sheet |
Negotiable |
|
||||||
