Product Summary
The LH0063CK is a high speed, FET input, voltage follower/buffer. The LH0063CK designed to provide high current drive at frequencies from DC to 300MHZ. Both devices are similar in their slew rate; up to 6000 volts per microsecond with light loads and 2000 volts per microsecond with 50 ohm load. The LH0063CK is not internally current limited, giving added versatility and higher transient drive capability. The applications of the LH0063CK include High Speed Line Drivers, Video Drivers/Impedance Transformation, Nuclear Instrumenation Amplifiers, Operatinal Ameplifier Isolation, High Speed A to D Input Buffers, Video Cross Point Switches.
Parametrics
LH0063CK absolute maximum ratings: (1)Supply Voltage: 40 V; (2)Maximum Power Dissipation: 5 W; (3)Maximum Junction Temperature: 175 ℃; (4)Continuous Output Current: ± 250 mA; (5)Peak Output Current: ± 500 mA; (6)LH0063CK: -55 ℃ to +125 ℃; (7)Stotage Temperature Range: -65 ℃ to 150 ℃; (8)Lead Temperature: +300 ℃.
Features
LH0063CK features: (1)Pin for Pin 2nd Source; (2)6000V/μSec Slew Rate; (3)DC to 300MHz Bandwith; (4)±10 V Output Drive Into 50Ω; (5)2ns Rise and Fall Times; (6)Wide Range Single or Dual Supply Operation; (7)10GΩ Input Resistance.

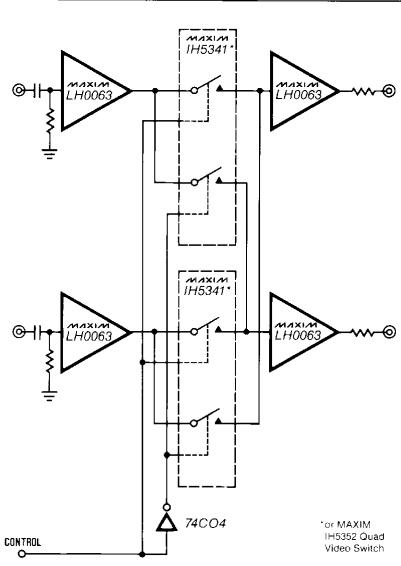

Diagrams
