Product Summary
The IRF4905 is a HEXFET Power MOSFET. Fifth Generation HEXFETs of the IRF4905 from International Rectifier utilize advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit of the IRF4905, combined with the fast switching speed and ruggedized device design that HEXFET Power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications.
Parametrics
IRF4905 absolute maximum ratings: (1)ID @ TC = 25 ℃, Continuous Drain Current, VGS @ -10V: -74 A; (2)ID @ TC = 100 ℃, Continuous Drain Current, VGS @ -10V: -52 A; (3)IDM, Pulsed Drain Current: -260 A; (4)PD @ TC = 25 ℃, Power Dissipation: 200 W; (5)VGS, Gate-to-Source Voltage: ± 20 V; (6)EAS, Single Pulse Avalanche Energy: 930 mJ; (7)IAR, Avalanche Current: -38 A; (8)EAR, Repetitive Avalanche Energy: 20 mJ; (9)DV/DT, Peak Diode Recovery dv/dt: -5.0 V/ns; (10)TJ,TSTG, Operating Junction and Storage Temperature Range: -55 to + 175 ℃.
Features
IRF4905 features: (1)Advanced Process Technology; (2)Ultra Low On-Resistance; (3)Dynamic dv/dt Rating; (4)175℃ Operating Temperature; (5)Fast Switching; (6)P-Channel; (7)Fully Avalanche Rated.

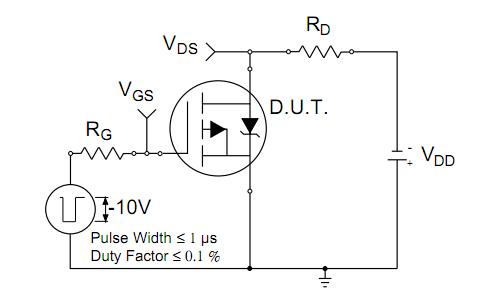

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

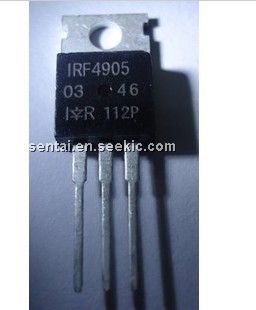

IRF4905 |
International Rectifier |
MOSFET MOSFET, P-CHANNEL, -55V, -74A, 20 mOhm, 120 nC Qg, TO-220AB |
Data Sheet |
Negotiable |
|
|||||||||||||
IRF4905L |
International Rectifier |
MOSFET P-CH 55V 74A TO-262 |
Data Sheet |
|
|
|||||||||||||
IRF4905PBF |
International Rectifier |
MOSFET MOSFT PCh -55V -74A 20mOhm 120nC |
Data Sheet |
|
|
|||||||||||||
IRF4905LPBF |
International Rectifier |
MOSFET MOSFT PCh -55V -74A 20mOhm 120nC |
Data Sheet |
|
|
|||||||||||||
IRF4905SPBF |
International Rectifier |
MOSFET |
Data Sheet |
|
|
|||||||||||||
IRF4905S |
International Rectifier |
MOSFET P-CH 55V 74A D2PAK |
Data Sheet |
|
|
|||||||||||||
IRF4905STRLPBF |
International Rectifier |
MOSFET MOSFT PCh -55V -74A 20mOhm 120nC |
Data Sheet |
|
|
|||||||||||||
IRF4905STRRPBF |
International Rectifier |
MOSFET |
Data Sheet |
|
|
