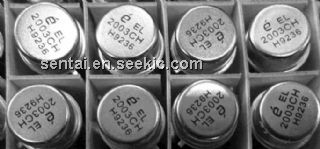

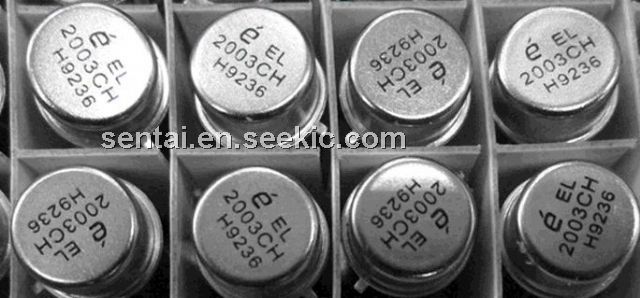

Product Summary
The EL2003CH is a 100MHz Video Line Driver. The EL2003CH is general purpose monolithic unity gain buffers featuring 100MHz, -3dB bandwidth and 4ns small signal rise time. The EL2003CH’s buffer is capable of delivering a ±100mA current to a resistive load and is oscillation free into capacitive loads. In addition, the EL2003CH has internal output short circuit current limiting which will protect the devices under both a DC fault condition and AC operation with reactive loads. The extremely fast slew rate of 1200V/μs, wide bandwidth, and high output drive make the EL2003CH ideal choices for closed loop buffer applications with wide band op amps. The applications of the EL2003CH include Co-ax cable driver, Flash converter driver, Video DAC buffer, Op amp booster.
Parametrics
EL2003CH absolute maximum ratings: (1)VS, Supply Voltage (V+ - V-): ±18V or 36V; (2)VIN, Input Voltage: ±15V or VS; (3)IIN, Input Current (See note above): ±50mA; (4)PD, Power Dissipation: See Curves; (5)Output Short Circuit Duration: Continuous; (6)TA, Operating Temperature Range EL2003C: -40 ℃ to +85 ℃; (7)TJ, Operating Junction Temperature: 175 ℃; (8)TST, Storage Temperature: -65 ℃ to +150 ℃.
Features
EL2003CH features: (1)Differential gain 0.1%; (2)Differential phase 0.1°; (3)100mA continuous output current guaranteed; (4)Short circuit protected; (5)Wide bandwidth - 100MHz; (6)High slew rate - 1200V/μs; (7)High input impedance - 2MΩ; (8)Low quiescent current drain.

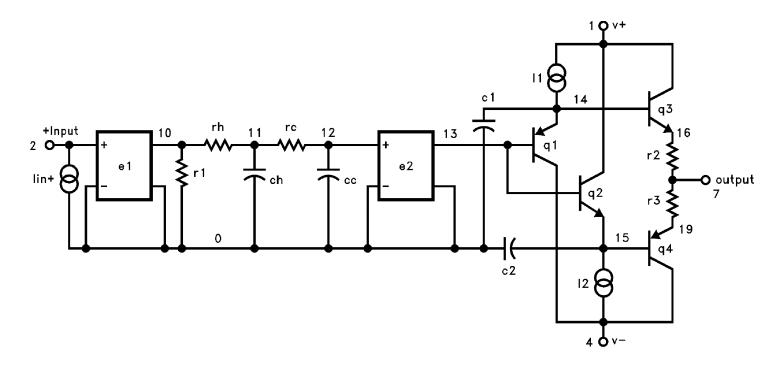

Diagrams
