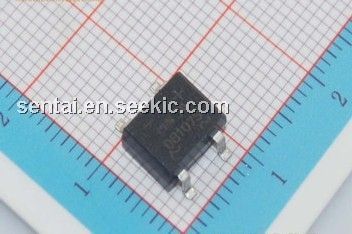

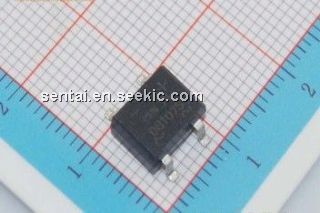

DB107S

DB107S, single phase 1.0 amp surface mount bridge rectifier, 1000V, 10 A, SOP, SEP ELECTRONIC CORP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.08~0.08 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.08 / Piece
1000 ~ 10000 :	0.08 / Piece

PartNumber:: DB107S

Brand:: SEP ELECTRONIC CORP - SEP | Pack: SOP | D/C: 12+

Availability:: Supply Ability: 3/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Miki's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-08-29

From Other Seller

Part Number:DB107S
US $0.08 - 0.08
Quantity:

piece

Product Summary

The DB107S is a single phase 1.0 amp surface mount bridge rectifier.

Parametrics

DB107S absolute maximum ratings: (1)Maximum Recurrent Peak Reverse Voltage: 1000V; (2)Maximum RMS Voltage: 700V; (3)Maximum DC Blocking Voltage: 1000V; (4)Maximum Average Forward Rectified Current: 1.0A; (5)Peak Forward Surge Current, 8.3 ms single half sine-wave; (6)superimposed on rated load (JEDEC method): 50A; (7)Maximum Forward Voltage Drop per Bridge Element at 1.0A D.C.: 1.1V; (8)Maximum DC Reverse Current, Ta=25℃: 10μA; (9)at Rated DC Blocking Voltage, Ta=125℃: 500μA; (10)Storage Temperature Range, TSTG: -65 to 150℃; (11)Operating Temperature Range, TJ: -65 to 125℃.

Features

DB107S features: (1)Ideal for printed circuit board; (2)Reliable low cost construction utilizing molded plastic technique; (3)High surge current capability; (4)Polarity: marked on body; (5)Mounting position: Any; (6)Weight: 1.0 grams.
