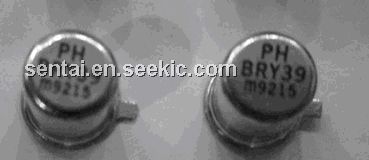

Product Summary
The BRY39 is an integrated PNP/NPN transistor pair with all electrodes accessible. Silicon planar PNPN switch or trigger device in a TO-72 metal package. The application of the BRY39 includes Switching applications such as: Motor control, Oscillators, Relay replacement, Timers, Pulse shapers, etc.
Parametrics
BRY39 absolute maximum ratings: (1)VEBO, emitter-base voltage open collector: -70 V; (2)VCBO, collector-base voltage: 70 V; (3)IERM, repetitive peak emitter current: -2.5 A; (4)Ptot, total power dissipation: 275 mW; (5)Tj, junction temperature: 150 ℃; (6)VAK, forward on-state voltage: 1.4 V; (7)IH, holding current: 1mA; (8)ton, turn-on time: 0.25 μs; (9)toff, turn-off time: 15 μs; (10)VGA, gate-anode voltage: 70 V; (11)IA, anode current: 175 mA; (12)Tj, junction temperature: 150 ℃; (13)Ip, peak point current: 0.2 μA.
Features
BRY39 features: (1)Silicon controlled switch; (2)Programmable unijunction transistor.

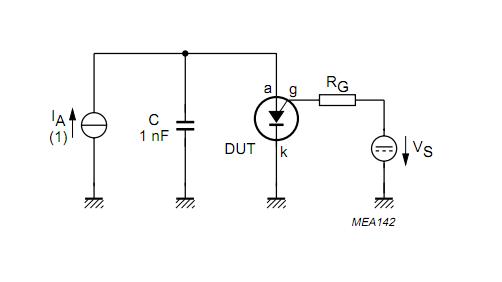

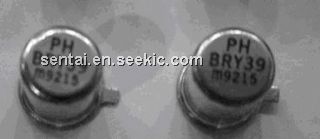

Diagrams
