Product Summary

The AO4410 is an N-channel enhancement mode field effect transistor. The AO4410 uses advanced trench technology to provide excellent RDS(ON), shoot-through immunity, body diode characteristics and ultra-low gate resistance. This device is ideally suited for use as a low side switch in Notebook CPU core power conversion. Standard product AO4410 is Pb-free (meets ROHS & Sony 259 specifications).

Parametrics

AO4410 absolute maximum ratings: (1)Drain-Source Voltage: 30V; (2)Gate-Source Voltage: +/-12V; (3)Continuous Drain Current: 18 or 15 A; (4)Pulsed Drain Current: 80 A; (5)Power Dissipation: 3.0 W; (6)Junction and Storage Temperature Range: -55 to 150 ℃.

Features

AO4410 features: (1)VDS (V) = 30V; (2)ID = 18A (VGS = 10V); (3)RDS(ON) < 5.5mΩ&cedil; (VGS = 10V); (4)RDS(ON) < 6.2mΩ&cedil; (VGS = 4.5V).

Diagrams

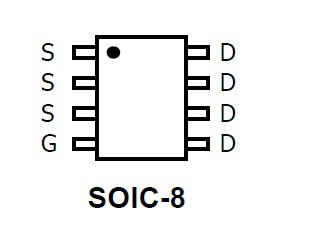

AO4410 pin connection
