Product Summary
The AD545AJH is a monolithic precision FET-input operational amplifier. The AD545AJH is a successor to the AD545A and will replace the AD545A in most applications. Bias current is specified as 2pA max for the AD545AJ and IpA max for the AD545AK, L and M.Offset voltage is laser trimmed to 0.5 mV max for the AD545AL, 0.25mV max for the AD545AM. All devices of the AD545AJH also feature low voltage noise and power consumption. The AD545A is internally compensated, short circuit protected and free of latch-up.
Parametrics
AD545AJH absolute maximum ratings: (1)VOUT: 20000 V/V min; (2)TA: 15000 V/V min; (3)Voltage @ RL: ±10 V min; (4)Load Capacitance: 500 pF; (5)Short Circuit Current: 10 mA min; (6)Unity Gain, Small Signal: 1 MHz; (7)Full Power Response: 5 kHZ min; (8)Slew Rate Inverting Unity Gain: 0.3 V/μs min; (9)Overload Recovery Inverting Unity Gain: 100 μs max; (10)vs. Temperature: 25 μV/℃ max.
Features
AD545AJH features: (1)Low Offset Voltage: 0.5 mV max; (2)Low Offset Voltage Drift: 5 μV/℃ max; (3)Low Power: 1.5 mA max; (4)Low Bias Current: 1 pA max; (5)Low Noise: 3 μV p-p, 0.1 Hz to 10 Hz.

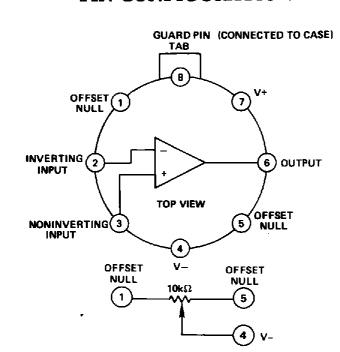

Diagrams
