Product Summary
The 5962-9759902QXC is an Amplifier IC.
Parametrics
5962-9759902QXC absolute maximum ratings: (1)Supply voltage range (VCC): -2.0 Vdc to +7.0 Vdc; (2)Programming supply voltage range (VPP): -2.0 Vdc to +13.5 Vdc 2/; (3)DC input voltage range: -2.0 Vdc to +7.0 Vdc 2/ ; (4)Maximum power dissipation: 2.5 W 3/; (5)Lead temperature (soldering, 10 seconds): +260℃; (6)Thermal resistance, junction-to-case (θJC): Case outline X, See MIL-STD-1835, Case outline Y and Z, 7.2℃/W; (7)Junction temperature (TJ): +175℃ 4/; (8)Storage temperature range: -65℃ to +150℃; (9)Endurance: 25 erase/write cycles (minimum); (10)Data retention: 10 years (minimum).
Features
5962-9759902QXC features: (1)Case operating temperature range (TC): -55℃ to +125℃; (2)Supply voltage relative to ground (VCC): +4.5 Vdc minimum to +5.5 V dc maximum; (3)Ground voltage (GND): 0 Vdc; (4)Input high voltage (VIH): 2.0 Vdc minimum; (5)Input low voltage (VIL): 0.8 Vdc maximum.

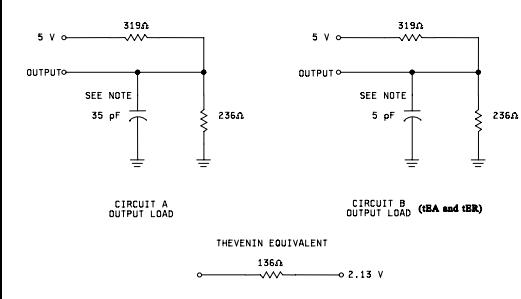

Diagrams
