Product Summary

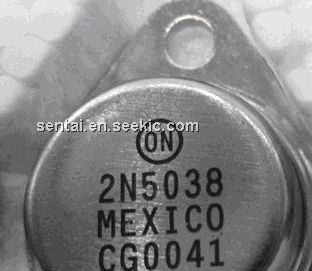

The 2N5038 is a POWER TRANSISTOR.
Parametrics
2N5038 absolute maximum ratings: (1)VCEO: 90 to 75V; (2)VCBO: 150 to 120 V; (3)VCEV: 150 to 120 V; (4)VCEV: 7V; (5)IC: 20 A; (6)IB: 5 A; (7)PD: 140 W; (8)TJ,TJSG: -65 to 200 ℃.
Features
2N5038 features: (1)VCEO: 90 V; (2)ICEX: 50 mA; (3)IEBO: 5 mA; (4)HFE: 20 to 100 V; (5)VCE: 2.5 V; (6)VBE: 3.3 V.

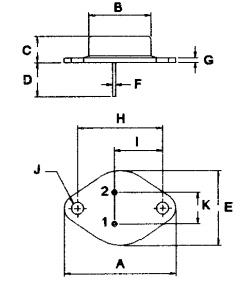

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 2N5038 |
STMicroelectronics |
Transistors Bipolar (BJT) TO-3 NPN POWER SW |
Data Sheet |
Negotiable |
|
||||||||||||
|
2N5038G |
ON Semiconductor |
Transistors Bipolar (BJT) 20A 90V 140W NPN |
Data Sheet |
|
|
||||||||||||
