Product Summary
The 2N1599 is a silicon thyristor.
Parametrics
2N1599 absolute maximum ratings: (1)VRSM(REP), Peak reverse blocking voltage: 400 V; (2)IT(RMS), Forward Current RMS (all conduction angles): 1.6 Amp; (3)ITSM, Peak Surge Current: 15 Amp; (4)PGM, Peak Gate Power – Forward: 0.1 W; (5)PG(AV), Average Gate Power - Forward: 0.01 W; (6)IGM, Peak Gate Current – Forward: 0.1 Amp; (7)VGFM, Peak Gate Voltage - Forward: 10 V; (8)VGRM, Peak Gate Voltage - Reverse: 10 V; (9)TJ, Operating Junction Temperature Range: -65 to +125 ℃; (10)TSTG, Storage Temperature Range: -65 to +150 ℃.
Features
2N1599 features: (1)VDRM, Peak Forward Blocking Voltage: 400 V; (2)IRRM, Peak Reverse Blocking Current: Max : 1.0 mA.

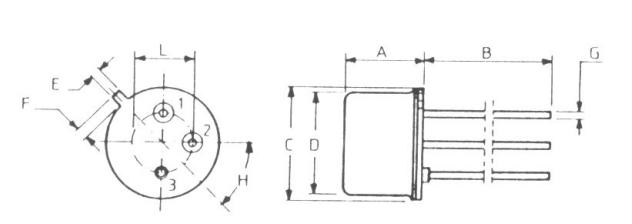

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 2N1599 |
Other |
|
Data Sheet |
Negotiable |
|
||||
