Product Summary
The GS160A20-R7B a 160WAC-DC single output desktop.
Parametrics
GS160A20-R7B absolute maximum ratings: (1)DC VOLTAGE: 20 V; (2)RATED CURRENT: 8 A; (3)CURRENT RANGE: 0 to 8A; (4)RATED POWER (max.): 160 W; (5)RIPPLE & NOISE (max.): 150mVp-p; (6)VOLTAGE TOLERANCE: +/-4.0%; (7)LINE REGULATION: +/-1.0%; (8)AC CURRENT: 1.85A / 115VAC or 1A / 230VAC; (9)INRUSH CURRENT (max.): 120A / 230VAC.
Features
GS160A20-R7B features: (1)Universal AC input / Full range; (2)3 pole AC inlet IEC320-C14; (3)Protections: Short circuit / Overload / Over voltage / Over temperature; (4)Fully enclosed plastic case; (5)Approvals: UL / CUL / TUV / BSMI / CCC / CB / FCC / CE; (6)Class power ( with earth pin); (7)LED indicator for power on; (8)No load power consumption<0.5W; (9)ENERGY STAR compliant; (10)Meet EISA 2007(Energy Independence and Security Act); (11)2 years warranty; (12)Built-in active PFC function, PF>0.95.

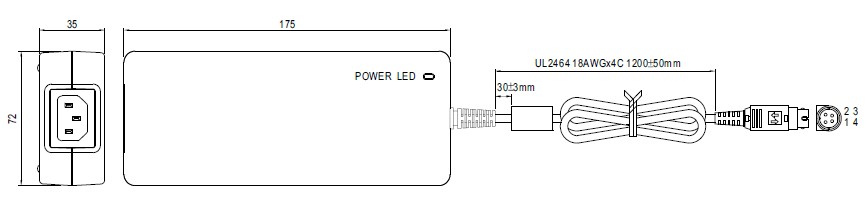

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 GS160A20-R7B |
Mean Well |

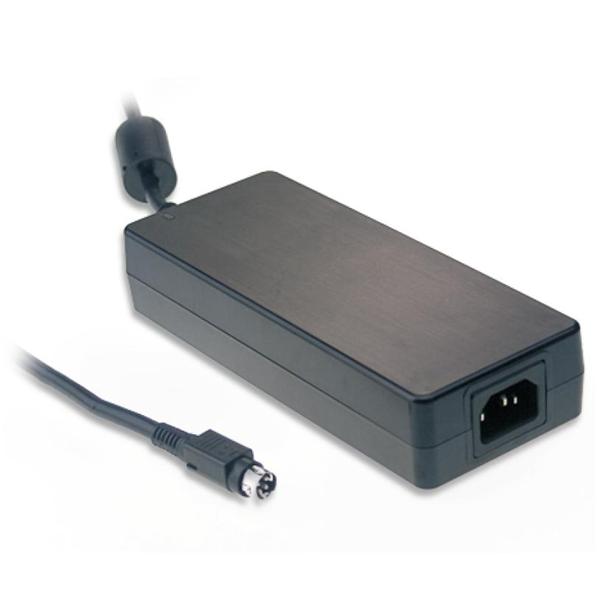

Plug-In AC Adapters 160W 20V 8A W/PFC |
Data Sheet |
Negotiable |
|
||||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||||
 |
GS160203 |
|

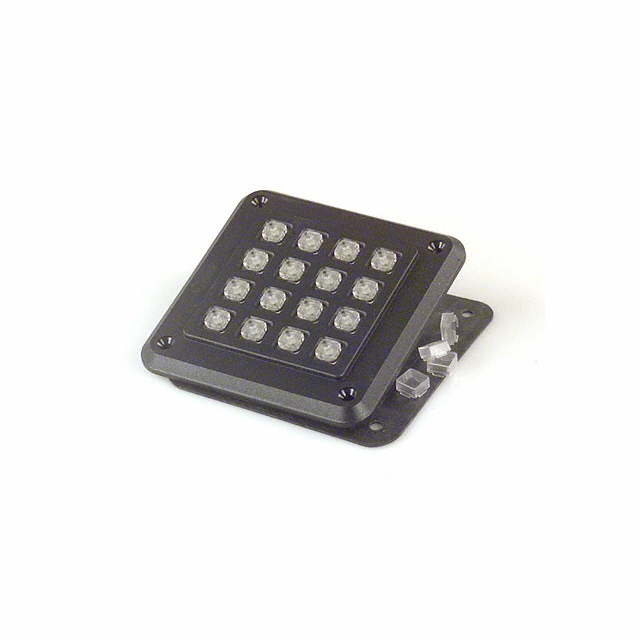

KEYPAD W/KEYCAPS 16 KEY BLACK |
Data Sheet |
|
|
||||||||||||||
|
GS160A12-R7B |
Mean Well |
Plug-In AC Adapters 138W 12V 11.5A W/PFC |
Data Sheet |
Negotiable |
|
||||||||||||||
|
GS160A15-R7B |
Mean Well |
Plug-In AC Adapters 144W 15V 9.6A W/PFC |
Data Sheet |
Negotiable |
|
||||||||||||||
|
GS160A20-R7B |
Mean Well |
Plug-In AC Adapters 160W 20V 8A W/PFC |
Data Sheet |
Negotiable |
|
||||||||||||||
|
GS160A24-R7B |
Mean Well |
Plug-In AC Adapters 160W 24V 6.67A W/PFC |
Data Sheet |
Negotiable |
|
||||||||||||||
|
GS160A48-R7B |
Mean Well |
Plug-In AC Adapters 160W 48V 3.34A W/PFC |
Data Sheet |
Negotiable |
|
||||||||||||||
