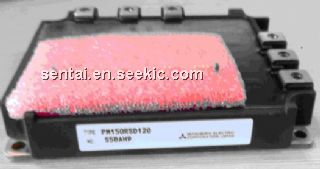

The PM150RSD120 is a powerex intellimod intelligent power module isolated base modules designed for power switching applications operating at frequencies to 20kHz. Built-in control circuits of the PM150RSD120 provide optimum gate drive and protection for the IGBT and free-wheel diode power devices. The applications of the PM150RSD120 include Inverters, UPS, Motion/Servo Control, Power Supplies.
Parametrics
PM150RSD120 absolute maximum ratings: (1)Power Device Junction Temperature: -20 to 150 ℃; (2)Storage Temperature: -40 to 125 ℃; (3)Case Operating Temperature: -20 to 100 ℃; (4)Mounting Torque, M5 Mounting Screws: 31 in-lb; (5)Mounting Torque, M5 Main Terminal Screws: 31 in-lb; (6)Module Weight (Typical): 920 Grams; (7)Supply Voltage Protected by OC and SC: 800 Volts; (8)Isolation Voltage, AC 1 minute, 60Hz Sinusoidal: 2500 Volts.
Features
PM150RSD120 features: (1)Complete Output Power Circuit; (2)Gate Drive Circuit; (3)Protection Logic; (4)Low Loss Using 4th Generation; (5)IGBT Chip.

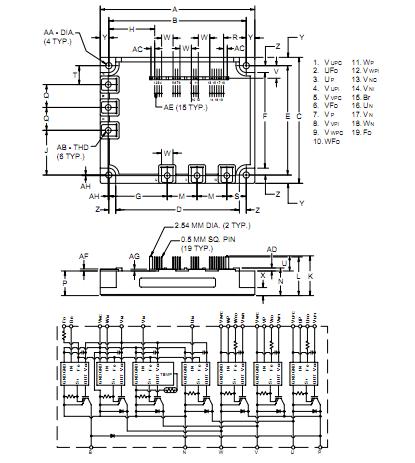

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PM150RSD120 |
|
MOD IPM 7PAC 1200V 150A |
Data Sheet |
Negotiable |
|
||||||
