Product Summary

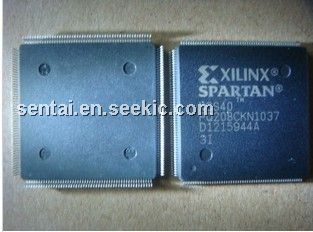

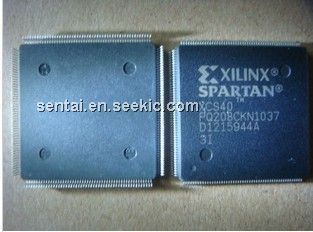

The xcs40pq208ckn is a high-volume production FPGA solution that delivers all the key requirements for ASIC replacement up to 40,000 gates. The requirement of the xcs40pq208ckn include high performance, on-chip RAM, core solutions and prices that, in high volume, approach and in many cases are equivalent to mask programmed ASIC devices.
Parametrics
xcs40pq208ckn absolute maximum ratings: (1)VCC Supply voltage relative to GND: –0.5 to +7.0 V; (2)VIN Input voltage relative to GND(2,3): –0.5 to VCC +0.5 V; (3)VTS Voltage applied to 3-state output(2,3): –0.5 to VCC +0.5 V; (4)TSTG Storage temperature (ambient): –65 to +150 ℃; (5)TJ Junction temperature Plastic packages: +125 ℃.
Features
xcs40pq208ckn features: (1)Available in both 5V and 3.3V versions; (2)On-chip SelectRAM. memory; (3)Fully PCI compliant; (4)Full readback capability for program verification and internal node observability; (5)Dedicated high-speed carry logic; (6)Internal 3-state bus capability; (7)Eight global low-skew clock or signal networks; (8)IEEE 1149.1-compatible Boundary Scan logic; (9)Low cost plastic packages available in all densities; (10)Footprint compatibility in common packages.

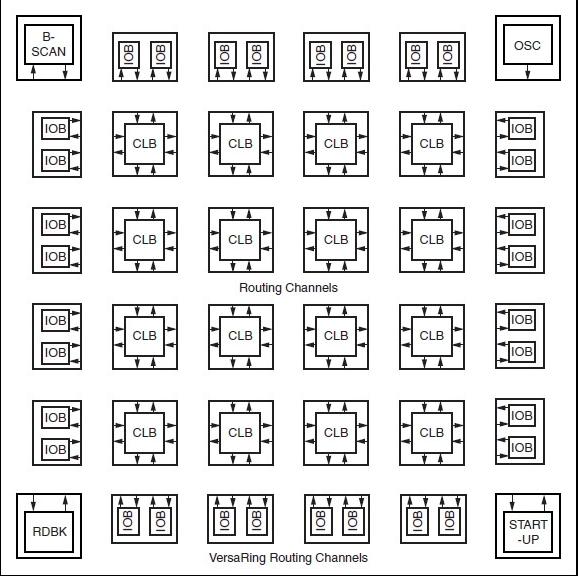

Diagrams
