Product Summary

The fa57sa50lc is a hexfet power mosfet. The fa57sa50lc provides the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The SOT-227 packageof the fa57sa50lc is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 500 watts. The low thermal resistance of the SOT-227 contributes to wide acceptance of the fa57sa50lc throughout the industry.

Parametrics

fa57sa50lc absolute maximum ratings: (1) Continuous Drain Current, VGS@10V, ID@Tc=25°C: 57A; (2) Continuous Drain Current, VGS@10V, ID@Tc=100°C: 36A; (3) Pulsed Drain Current IDM: 228A; (4) Power Dissipation PD@TC=25°C: 625W, Linear Derating Factor: 5W/°C; (5) Gate-to-Source Voltage VGS: ±20V; (6) Avalanche Current IAR: 57A; (7) Repetitive Avalanche Energy EAR: 62.5mJ; (8) Peak Diode Recovery dv/dt, dv/dt: 3V/ns; (9) Operating Junction and Storage Temperature Range Tj, Tstg: -55 to +150°C ; (10) Single Pulse Avalanche Energy EAS: 725mJ; (11) Insulation Withstand Voltage (AC-RMS) VISO: 2.5kV.

Features

fa57sa50lc features: (1) Fully Isolated Package; (2) Easy to Use and Parallel; (3) Dynamic dv/dt Rating; (4) Low On-Resistance; (5) Fully Avalanche Rated; (6) Simple Drive Requirements; (7) Low Gate Charge Device; (8) Low Drain to Case Capacitance; (9) Low Internal Inductance.

Diagrams

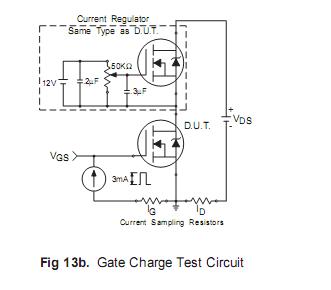

fa57sa50lc test circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FA57SA50LC
FA57SA50LC

MOSFET N-CH 500V 57A SOT-227
Data Sheet
