Product Summary

The ec3a21 is a 3 watt wide input DC-DC converter. The input voltage range of the ec3a21 is from 5V to 48V.

Parametrics

ec3a21 absolute maximum ratings: (1) input voltage: 5V; (2) output current: 600mA; (3) Input current: 5mA (no load) , 168mA (full load) .

Features

ec3a21 features: (1) 3W Isolated Output; (2) 24-Pin DIP Package; (3) Efficiency to 80%; (4) 2:1 Input Range; (5) Regulated Outputs; (6) Pi Input Filter; (7) Continuous Short Circuit Protection.

Diagrams

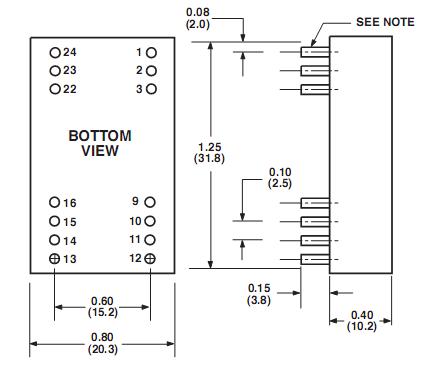

ec3a21 dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
EC3A21
EC3A21
Cincon
DC/DC Converters 3W 18-36VDC 5VDC 600mA
Data Sheet
0-1: $8.76
1-10: $8.41
10-50: $7.88
50-100: $7.36
EC3A21H
EC3A21H
Cincon
DC/DC Converters 3W 18-36VDC 5VDC 600mA 3K ISO VOL
Data Sheet
0-1: $10.41
1-10: $10.00
10-50: $9.37
50-100: $8.74
EC3A21H-E
EC3A21H-E
Cincon
DC/DC Converters 3W 18-36VDC 5VDC 600mA 3K ISO VOL
Data Sheet
0-1: $10.00
1-10: $9.58
10-50: $9.37
50-100: $8.74
EC3A21HM
EC3A21HM
Cincon
DC/DC Converters 3W 18-36VDC 5VDC 600mA
Data Sheet
0-1: $11.36
1-10: $10.90
10-50: $10.22
50-100: $9.54
EC3A21M
EC3A21M
Cincon
DC/DC Converters 3W 18-36V 5V 600mA DIP-24
Data Sheet
0-1: $10.26
1-10: $9.85
10-50: $9.23
50-100: $8.62
EC3A21MS
EC3A21MS
Cincon
DC/DC Converters 3W 18-36V 5V 600mA SMD-24
Data Sheet
0-1: $9.55
1-10: $9.27
10-50: $8.95
50-100: $8.35
