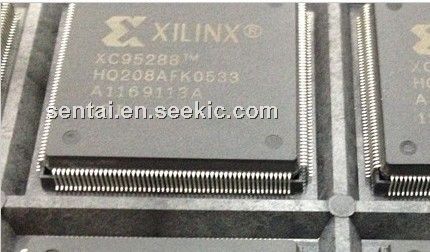

Product Summary
The XC95288-15HQ208I is a high-performance CPLD. The XC95288-15HQ208I is providing advanced in-system programming and test capabilities for general purpose logic integration. The XC95288-15HQ208I is comprised of eight 36V18 Function Blocks, providing 6,400 usable gates with propagation delays of 15 ns. See Figure 2 for the architecture overview.
Parametrics
XC95288-15HQ208I absolute maximum ratings: (1)VCC, Supply voltage relative to GND: –0.5 to 7.0 V; (2)VIN, Input voltage relative to GND: –0.5 to VCC + 0.5 V; (3)VTS, Voltage applied to 3-state output: –0.5 to VCC + 0.5 V; (4)TSTG, Storage temperature (ambient): –65 to +150 ℃; (5)TJ, Junction temperature: +150 ℃.
Features
XC95288-15HQ208I features: (1)15 ns pin-to-pin logic delays on all pins; (2)fCNT to 95 MHz; (3)288 macrocells with 6,400 usable gates; (4)Up to 166 user I/O pins; (5)5V in-system programmable, Endurance of 10,000 program/erase cycles, Program/erase over full commercial voltage and ; (6)temperature range; (7)Enhanced pin-locking architecture; (8)Flexible 36V18 Function Block, 90 product terms drive any or all of 18 macrocells within Function Block, Global and product term clocks, output enables, set and reset signals; (9)Extensive IEEE Std 1149.1 boundary-scan (JTAG) support; (10)Programmable power reduction mode in each macrocell; (11)Slew rate control on individual outputs; (12)User programmable ground pin capability; (13)Extended pattern security features for design protection; (14)High-drive 24 mA outputs; (15)3.3V or 5V I/O capability; (16)Advanced CMOS 5V FastFLASH? technology; (17)Supports parallel programming of more than one XC9500 concurrently; (18)Available 352-pin BGA and 208-pin HQFP packages.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
XC95288-15HQ208I |
IC CPLD 288 MCELL I-TEMP 208HQFP |
Data Sheet |
Negotiable |
|
||||||||||||||||||
