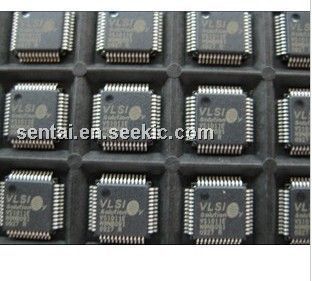

Product Summary

The VS1053B-L is a single-chip Ogg Vorbis/MP3/AAC/-WMA/MIDI audio decoder and an IMA ADPCM and user-loadable Ogg Vorbis encoder. The VS1053B-L contains a high-performance, proprietary low-power DSP processor core VS DSP4, working data memory, 16 KiB instruction RAMand 0.5+ KiB data RAM for user applications running simultaneously with any built-in decoder, serial control and input data interfaces, upto 8 general purpose I/O pins, an UART, as well as a high-quality variable-sample-rate stereo ADC (mic, line, line + mic or 2 × line) and stereo DAC, followed by an earphone amplifier and a common voltage buffer. The VS1053B-L receives its input bitstream through a serial input bus, which it listens to as a system slave.

Parametrics

VS1053B-L absolute maximum ratings: (1)Analog Positive Supply, AVDD: -0.3 to 3.6 V; (2)Digital Positive Supply,CVDD: -0.3 to 2.0 V; (3)I/O Positive Supply, IOVDD: -0.3 to 3.6 V; (4)Current at Any Digital Output: ±50 mA; (5)Voltage at Any Digital Input: -0.3 to IOVDD+0.31 V; (6)Operating Temperature: -40 to +85 ℃; (7)Storage Temperature: -65 to +150 ℃.

Features

VS1053B-L features: (1)Decodes Ogg Vorbis, MPEG 1 & 2 audio layer III; (2)Encodes Ogg Vorbis with software plugin; (3)Encodes IMA ADPCMfrommic/line (stereo); (4)Streaming support for MP3 and WAV; (5)EarSpeaker Spatial Processing; (6)Bass and treble controls; (7)Operates with a single 12..13MHz clock; (8)Can also be used with a 24..26MHz clock; (9)Internal PLL clock multiplier; (10)Low-power operation; (11)High-quality on-chip stereo DAC with no phase error between channels; (12)Zero-cross detection for smooth volume change; (13)Stereo earphone driver capable of driving a 30 Ω load; (14)Quiet power-on and power-off; (15)I2S interface for external DAC; (16)Separate voltages for analog, digital, I/O; (17)On-chip RAM for user code and data; (18)Serial control and data interfaces; (19)Can be used as a slave co-processor; (20)SPI flash boot for special applications; (21)UART for debugging purposes; (22)New functions may be added with software and upto 8 GPIO pins; (23)Lead-free RoHS-compliant package (Green).

Diagrams

VS1053B-L block diagram
