Product Summary
The VS1033C-L is a single-chip MP3/AAC/WMA/MIDI audio decoder and ADPCM encoder. The VS1033C-L contains a high-performance, proprietary low-power DSP processor core VS DSP4, working data memory, 5 KiB instruction RAM and 0.5 KiB data RAM for user applications, serial control and input data interfaces, upto 8 general purpose I/O pins, an UART, as well as a high-quality variable-sample-rate mono ADC and stereo DAC, followed by an earphone amplifier and a common buffer. The VS1033C-L receives its input bitstream through a serial input bus, which it listens to as a system slave.
Parametrics
VS1033C-L absolute maximum ratings: (1)Analog Positive Supply, AVDD: -0.3 to 3.6 V; (2)Digital Positive Supply, CVDD: -0.3 to 2.7 V; (3)I/O Positive Supply, IOVDD: -0.3 to 3.6 V; (4)Current at Any Digital Output: ±50 mA; (5)Voltage at Any Digital Input: -0.3 to IOVDD+0.31 V; (6)Operating Temperature: -40 to +85 ℃; (7)Storage Temperature: -65 to +150 ℃.
Features
VS1033C-L features: (1)DecodesMPEG 1 & 2 audio layer III; (2)Encodes IMA ADPCM from microphone or line input; (3)Streaming support for MP3 and WAV; (4)EarSpeaker Spatial Processing; (5)Bass and treble controls; (6)Operates with a single clock 12..13 MHz; (7)Can also be used with 24..26 MHz clocks; (8)Internal PLL clock multiplier; (9)Low-power operation; (10)High-quality on-chip stereo DAC with no phase error between channels; (11)Stereo earphone driver capable of driving a 30Ω load; (12)Quiet power-on and power-off; (13)I2S interface for external DAC; (14)Separate operating voltages for analog, digital and I/O; (15)5.5 KiB On-chip RAM for user code / data; (16)Serial control and data interfaces; (17)Can be used as a slave co-processor; (18)SPI ?ash boot for special applications; (19)UART for debugging purposes; (20)New functions may be added with software and 8 GPIO pins; (21)Lead-free RoHS-compliant package (Green).

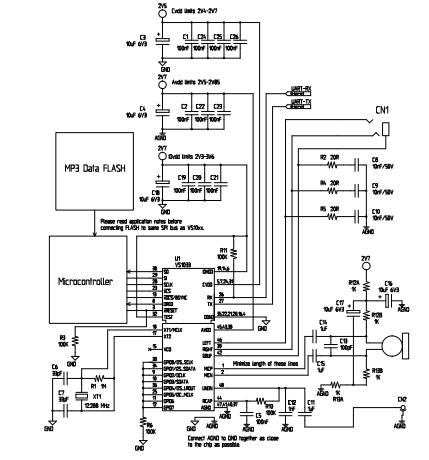

Diagrams
