Product Summary

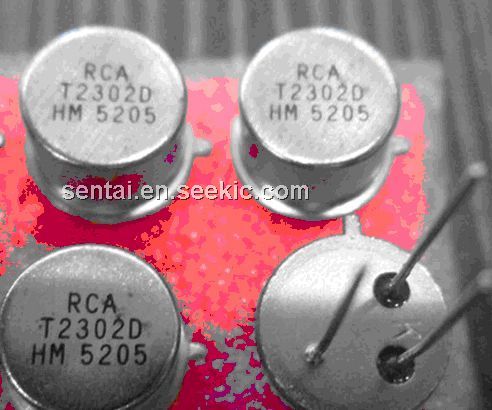

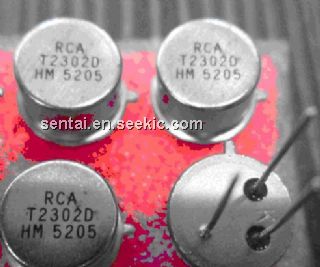

The T2302D is a gate-controlled full-wave silicon ac switch. The T2302D is designed to switch from an off-state to an on-state for either polarity of applied voltage with positive or negative gate triggering voltages.

Parametrics

T2302D absolute maximum ratings: (1)VDAOM: 200 V; (2)LTRMS: 2.5 A; (3)LTSM: 25 A; (4)DI/DT: 100A/μS; (5)L2T: 4.3 AS; (6)LGTM: 1 A; (7)PGM: 10 W; (8)PGAV: 0.15 W; (9)TSTG: -40 to 150 ℃; (10)TC: -40 to 125 ℃; (11)TT: 225℃.

Features

T2302D features: (1)800 V, 125 Deg. C T Operating; (2)High dvldt and di/dt Capability; (3)Low Switching Losses; (4)High Pulse Current Capability; (5)Low Forward and Reverse Leakage; (6)Sipos Oxide Glass Multilayer Passivation System; (7)Advanced Unisurface Construction; (8)Precise Ion Implanted Diffusion Sourse.

Diagrams

T2302D block diagram
