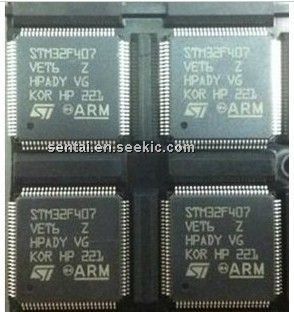

STM32F407VET6

Product Summary

The STM32F407VET6 is an ARM Cortex-M4 32b MCUFPU. The STM32F407VET6 is based on the high-performance ARM Cortex-M4 32-bit RISC core operating at a frequency of up to 168 MHz. The Cortex-M4 core of the STM32F407VET6 features a Floating point unit (FPU) single precision which supports all ARM single-precision data-processing instructions and data types. The STM32F407VET6 also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security. The Cortex-M4 core with FPU will be referred to as Cortex-M4F throughout this document.

Parametrics

STM32F407VET6 absolute maximum ratings: (1)VDD–VSS, External main supply voltage: –0.3 to 4.0 V; (2)VIN, Input voltage on five-volt tolerant pin: VSS–0.3 VDD+4; (3)VIN, Input voltage on any other pin: VSS–0.3 4.0; (4)|ΔVDDx|, Variations between different VDD power pins: 50 mV; (5)|VSSX-VSS|, Variations between all the different ground pins: 50 mV.

Features

STM32F407VET6 features: (1)Core: ARM 32-bit Cortex-M4 CPU with FPU, Adaptive real-time accelerator; (2)Memories, Up to 1 Mbyte of Flash memory; (3)LCD parallel interface, 8080/6800 modes; (4)Clock, reset and supply management; (5)Low power, Sleep, Stop and Standby modes; (6)3×12-bit, 2.4 MSPS A/D converters: up to 2 channels and 7.2 MSPS in triple interleaved mode; (7)2×12-bit D/A converters; (8)General-purpose DMA: 16-stream DMA controller with FIFOs and burst support; (9)Up to 17 timers: up to twelve 16-bit and two 32-bit timers up to 168 MHz, each with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input; (10)Debug mode, Serial wire debug (SWD) & JTAG interfaces; (11)Up to 140 I/O ports with interrupt capability, Up to 136 fast I/Os up to 84 MHz; (12)Up to 15 communication interfaces, Up to 3×I2C interfaces; (13)Advanced connectivity, USB 2.0 full-speed device/host/OTG; (14)controller with on-chip PHY; (15)8- to 14-bit parallel camera interface up to 54 Mbytes/s; (16)True random number generator; (17)CRC calculation unit; (18)96-bit unique ID; (19)RTC: subsecond accuracy, hardware calendar.

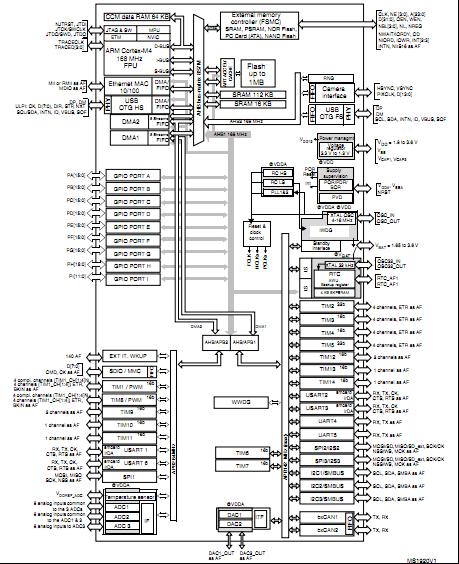

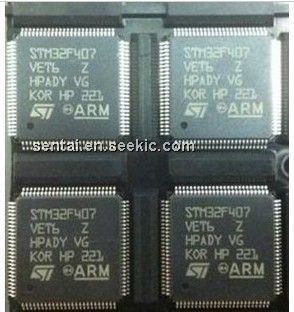

Diagrams
