Product Summary

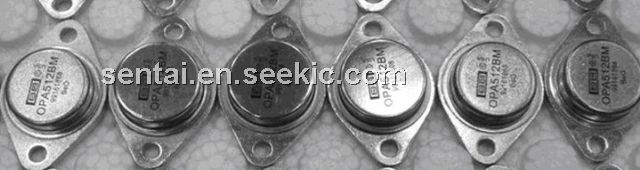

The OPA512BM is a high voltage, very-high current operational amplifier. The OPA512BM designed to drive a wide variety of resistive and reactive loads. The OPA512BM’s complementary class A/B output stage provides superior performance in applications requiring freedom from cross-over distortion. User-set current limit circuitry provides protection to the amplifier and load in fault conditions. A resistor-programmable voltage-current limiter circuit may be used to further protect the amplifier from damaging conditions. The applications of the OPA512BM include servo amplifier, motor driver, syncro excitation, audio amplifier, test pin driver.
Parametrics
OPA512BM absolute maximum ratings: (1)Supply Voltage, +VS to –VS: 100V; (2)Output Current: Source: 15A; (3)Power Dissipation, Internal: 125W; (4)Input Voltage: Differential: ±(|VS| –3V); (5)Temperature: Pins (soldering, 10s): +300 ℃; (6)Temperature Range: Storage: –65 ℃ to +150 ℃.
Features
OPA512BM features: (1)WIDE SUPPLY RANGE: ±10V to ±50V; (2)HIGH OUTPUT CURRENT: 15A Peak; (3)CLASS A/B OUTPUT STAGE: Low Distortion; (4)VOLTAGE-CURRENT LIMIT PROTECTION CIRCUIT; (5)SMALL TO-3 PACKAGE.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 OPA512BM |
Texas Instruments |
Operational Amplifiers - Op Amps Very Hi Current Hi Pwr Op Amp |
Data Sheet |
Negotiable |
|
||||
