Product Summary

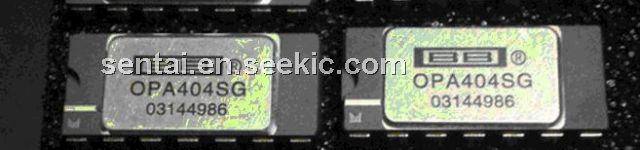

The OPA404SG is a high performance monolithic Difet (dielectrically-isolated FET) quad operational amplifier. The OPA404SG offers an unusual combination of very-low bias current together with wide bandwidth and fast slew rate. The applications of the OPA404SG include precision instrumentation, optoelectronics, sonar, ultrasound, professional audio equipment, medical equipment, detector arrays.
Parametrics
OPA404SG absolute maximum ratings: (1)Supply: ±18VDC; (2)Internal Power Dissipation: 1000mW; (3)Differential Input Voltage: ±36VDC; (4)Input Voltage Range: ±18VDC; (5)Storage Temperature Range: P, U = –40 ℃/+125 ℃, G = - 65 ℃/+150 ℃; (6)Operating Temperature Range: P, U = –25 ℃/+85 ℃, G = - 55 ℃/+125 ℃; (7)Lead Temperature (soldering, 10s): 300 ℃; (8)SOIC (soldering, 3s): +260 ℃; (9)Output Short-Circuit Duration(3): Continuous; (10)Junction Temperature: +175 ℃.
Features
OPA404SG features: (1)WIDE BANDWIDTH: 6.4MHz; (2)HIGH SLEW RATE: 35V/μs; (3)LOW OFFSET: ±750μV max; (4)LOW BIAS CURRENT: ±4pA max; (5)LOW SETTLING: 1.5μs to 0.01%; (6)STANDARD QUAD PINOUT.

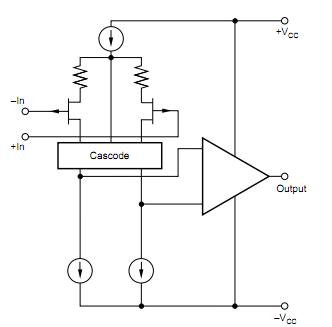

Diagrams
