MT9V111I99STC

Product Summary

The MT9V111I99STC is a 1/4-inch VGA-for-mat CMOS active-pixel digital image sensor, the result of combining the MT9V111I99STC image sensor core with Micron Imaging’s third-generation digital image flow processor technology. The MT9V111I99STC has an active imaging pixel array of 649 × 489, capturing high-quality color images at VGA resolution. The sensor is a complete camera-on-a-chip solution and is designed specifically to meet the demands of battery-powered products such as cellular phones, PDAs, and toys. The MT9V111I99STC incorporates sophisticated camera functions on-chip and is programmable through a simple two-wire serial interface. The applications of the MT9V111I99STC include Cellular phones, PDAs, PC Camera, Toys and other battery-powered products.

Parametrics

MT9V111I99STC absolute maximum ratings: (1)VIH, Input High Voltage: -0.25 to 0.25 V; (2)VIL, Input Low Voltage: -0.3 to 0.8 V; (3)IIN, Input Leakage Current: -5 to 5.0 μA; (4)VOH, Output High Voltage: -0.2 V; (5)VOL, Output Low Voltage: 0.2 V; (6)IOH, Output High Current: 15.0 mA; (7)IOL, Output Low Current: 20.0 mA; (8)IOZ, Tri-state Output Leakage Current: 5.0 μA; (9)IAA, Analog Operating Supply Current: 10.0 to 25.0 mA; (10)IDD, Digital Operating Supply Current: 5.0 to 20.0 mA; (11)IAA, Standby Analog Standby Supply Current: 2.5 to 5.0 μA; (12)IDD, Standby Digital Standby Supply Current: 2.5 to 5.0 μA.

Features

MT9V111I99STC features: (1)DigitalClarity CMOS Imaging Technology; (2)System-On-a-Chip (SOC)—Completely integrated camera system; (3)Ultra low-power, low cost CMOS image sensor; (4)Superior low-light performance; (5)Up to 30 fps progressive scan at 27 MHz for high-quality video at VGA resolution; (6)On-chip Image Flow Processor (IFP) performs sophisticated processing: color recovery and correction, sharpening, gamma, lens shading correction, on-the-fly defect correction, 2X fixed; (7)zoom; (8)Image decimation to arbitrary size with smooth, continuous zoom and pan; (9)Automatic exposure, white balance and black compensation, flicker avoidance, color saturation, and defect identification and correction, auto frame rate, back light compensation; (10)Xenon and LED-type flash support; (11)Two-wire serial programming interface; (12)ITU_R BT.656 (YCbCr), YUV, 565RGB, 555RGB, and 444RGB output data formats.

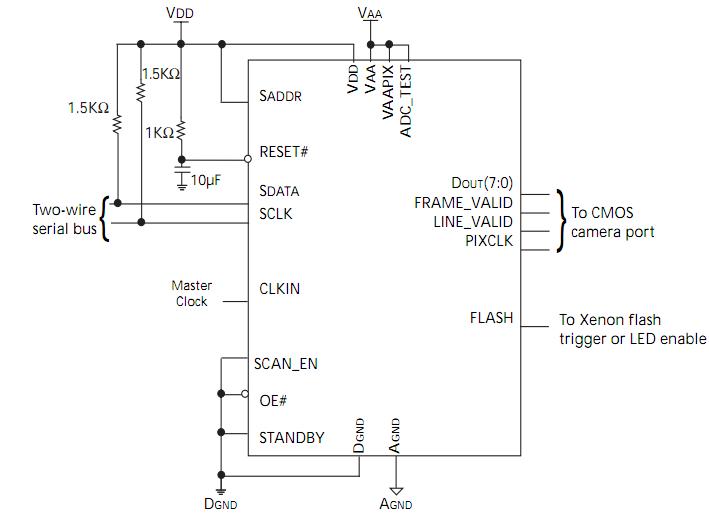

Diagrams
