Product Summary
The MC33886VWR2 is a 5.0 A H-Bridge. The MC33886VWR2 is a monolithic H-Bridge ideal for fractional horsepower DC-motor and bi-directional thrust solenoid control. The IC incorporates internal control logic, charge pump, gate drive, and low RDS(ON) MOSFET output circuitry. The MC33886VWR2 is able to control continuous inductive DC load currents up to 5.0 A. Output loads can be pulse width modulated (PWM-ed) at frequencies up to 10 kHz.
Parametrics
MC33886VWR2 absolute maximum ratings: (1)Supply Voltage, V+: 40 V; (2)Input Voltage (Note 1), VIN: -0.1 to 7.0 V; (3)FS Status Output (Note 2), VFS: 7.0 V; (4)Continuous Current (Note 3), IOUT: 5.0 A; (5)ESD Voltage for DH Package, VESD1: ±2000 V; (6)ESD Voltage for VW Package, VESD1: ±2000 V; (7)Storage Temperature, TSTG: -65 to 150 ℃; (8)Ambient Operating Temperature (Note 7), TA: -40 to 125 ℃; (9)Operating Junction Temperature, TJ: -40 to 150 ℃; (10)Terminal Soldering Temperature (Note 8), TSOLDER: 220 ℃; (11)Approximate Junction-to-Board Thermal Resistance, RθJB: 5.0℃/W.
Features
MC33886VWR2 features: (1)Similar to the MC33186DH1 with Enhanced Features; (2)5.0 V to 40 V Continuous Operation; (3)120 mΩRDS(ON) H-Bridge MOSFETs; (4)TTL /CMOS Compatible Inputs; (5)PWM Frequencies up to 10 kHz; (6)Active Current Limiting via Internal Constant OFF-Time PWM; (7)Output Short Circuit Protection; (8)Undervoltage Shutdown; (9)Fault Status Reporting; (10)Pb-Free Packaging Designated by Suffix Code VW.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

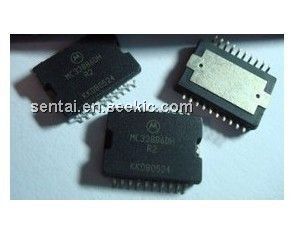

MC33886VWR2 |
Freescale Semiconductor |
Motor / Motion / Ignition Controllers & Drivers 5.0 A H-BRIDGE |
Data Sheet |
Negotiable |
|
|||||||||||||
